We provide ring dies, flat dies roller and roller shells of all the leading brands of pellet mills including Van Aarsen, Andritz, Buhler, CPM, Kahl, Lamec, Paladin, Sprout-Matador, Zhengchang, etc.

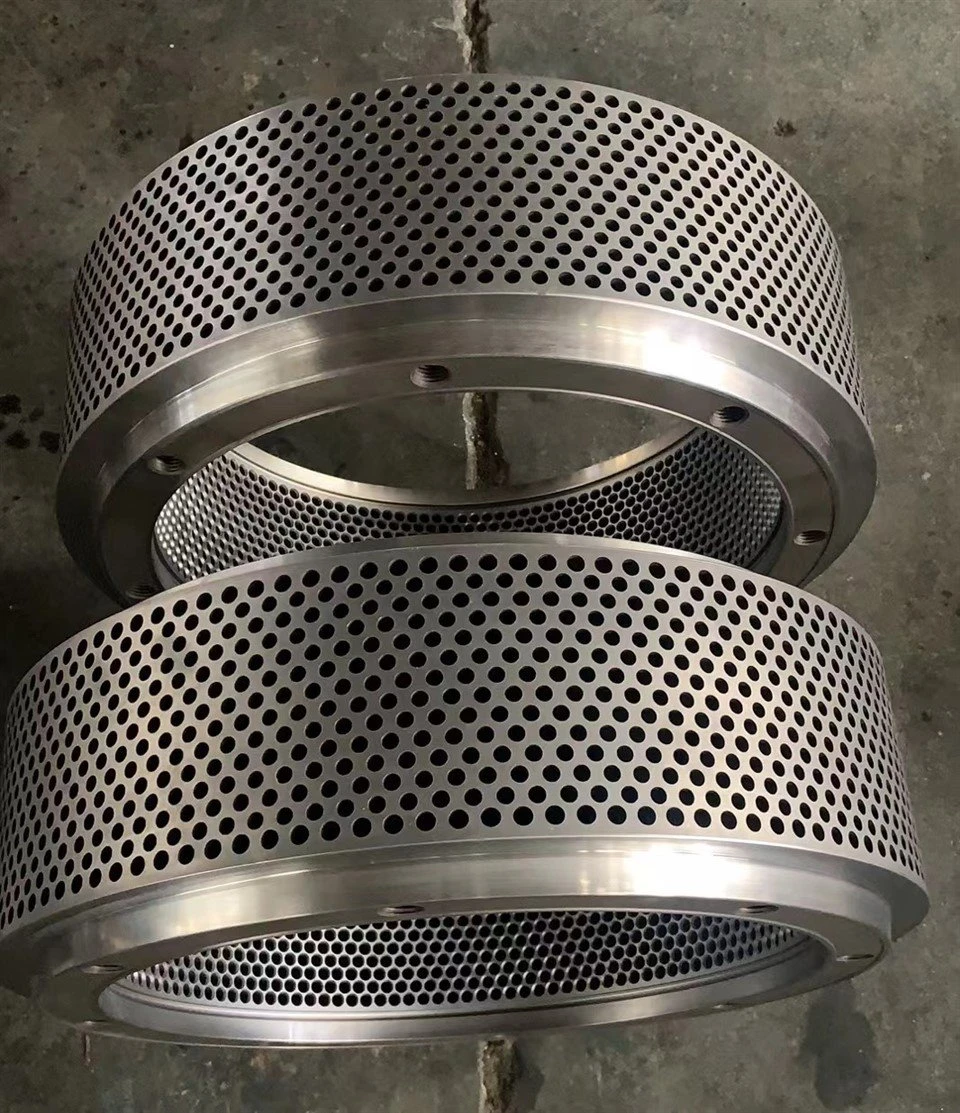

Ring die:
Our pellet ring dies hole sizes ranging from 1.5-24mm.
High quality material: 4Cr13, X46Cr13 and 60Si2Mn (tempered to 53-55 HRC), we can also produce pellet dies to our customer's according to their material specifications.
Using quality steel (with high carbon and chromium content) and high hardness after heat treatment, ensures our dies are durable and have a long using life.
Roller shell type:
We supply all types of roller shells:

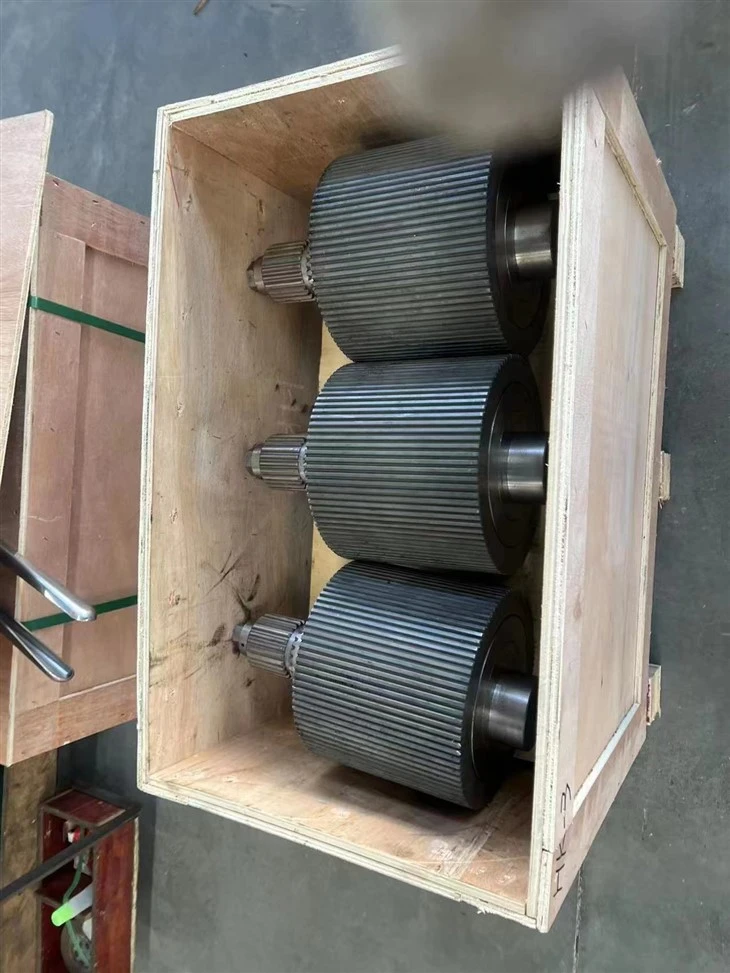

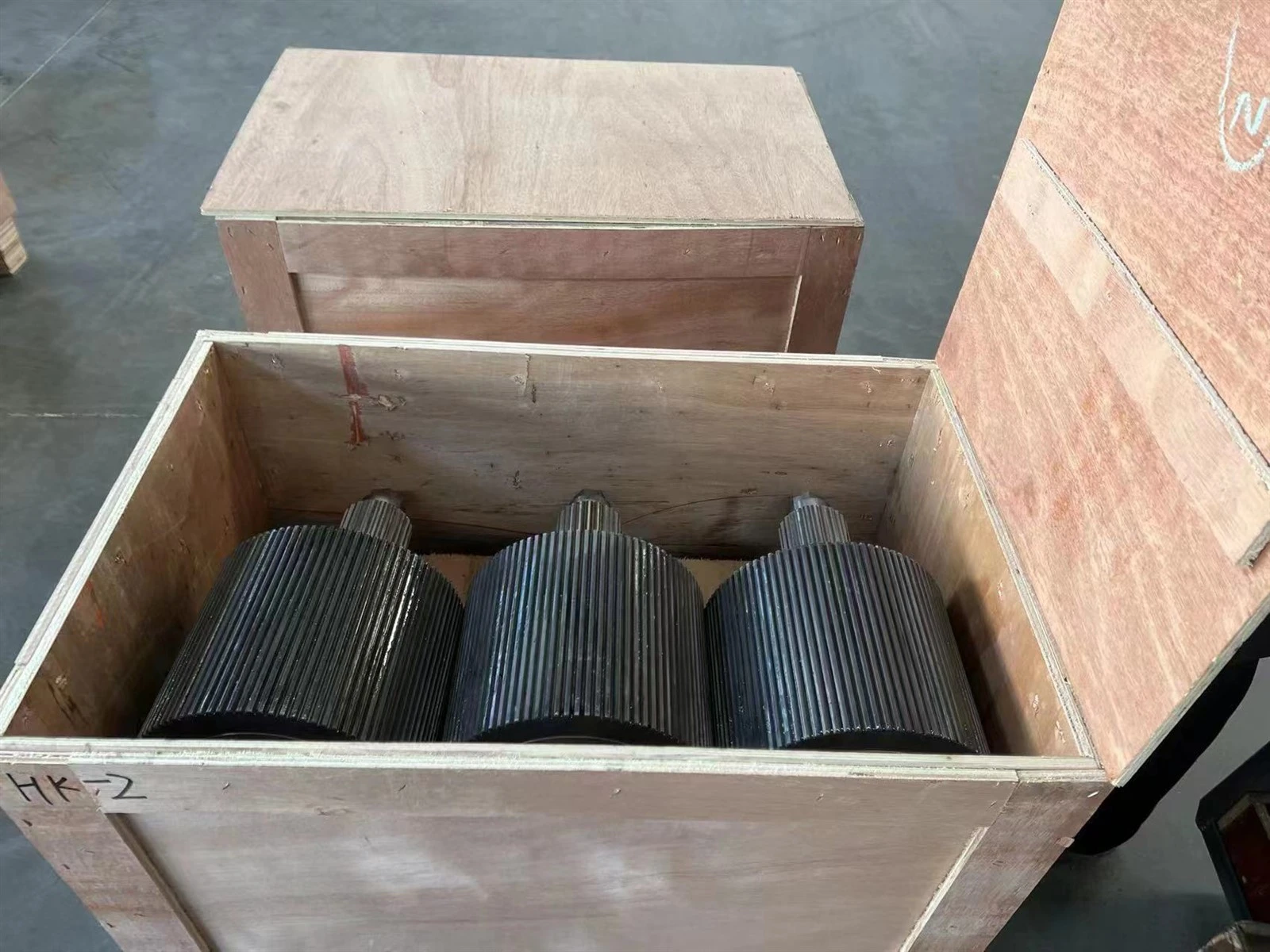

Corrugated roller shells: Straight and helical with either open or closed ends.Corrugated roller shells are popular as they reduce slippage of materials and give resistance to plugging the die. While this type of roller shell will see better compression of processed formulation, wear of the die is not as even as with dimples roller shells.
Dimpled roller shells: These roller shells are drilled with holes dimples, which when filled with the pelleting material create more friction on the surface and give better traction. Also known as honeycomb or perforated roller shells, dimpled roller shells have less drag and compression than corrugated roller shells but have a longer working life and result in more even wear on the pellet dies.
Tungsten carbide roller shells: Tungsten particles are applied to the exterior of the roller shells to provide better traction, greater durability and a longer working life.
Roller shell assembly:
We supply complete units of roller shell assembly for more used and pellet mill models.
Features:
Ring dies and roller shells are easy to mount. Can be use for long time. Made in stainless steel. Easy to start and durable.
We can offer our strategic partners information inbox.
We have over 320 customers from more than 30 countries in the past 12 years.
