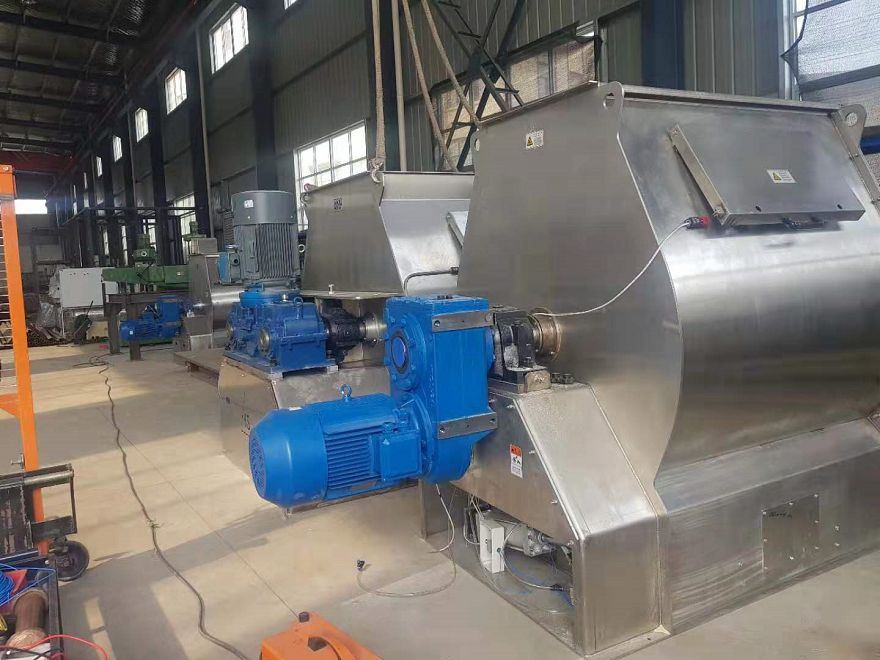

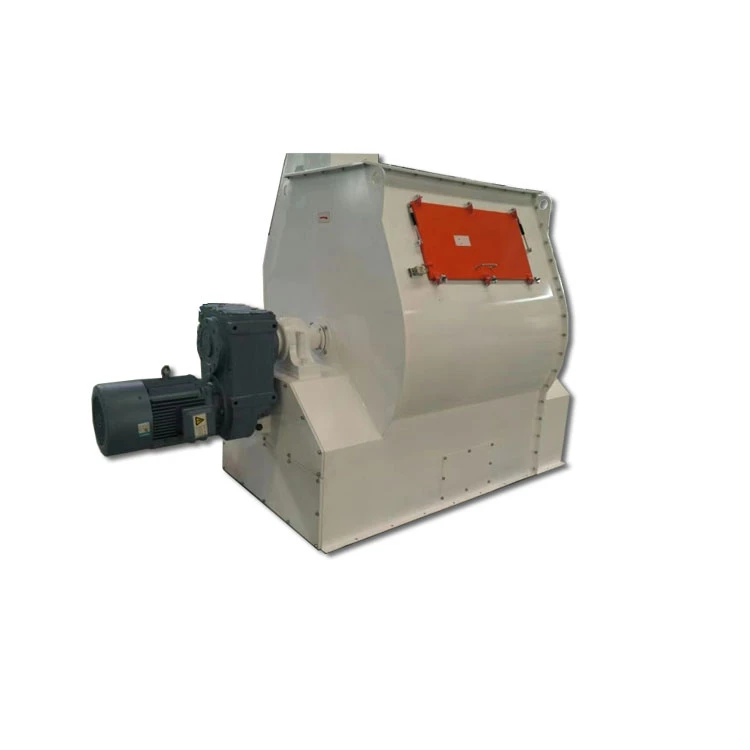

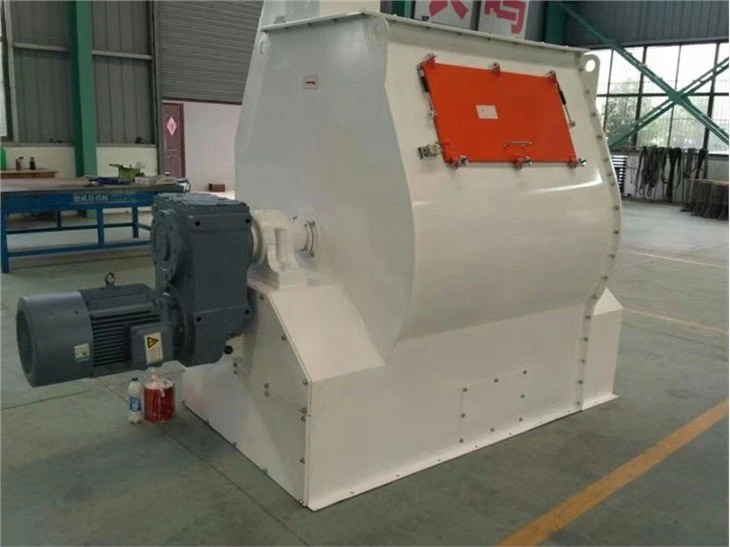

Animal feed mixer
SJHS Double-circle paddle mixer type is a high efficient mixer with feed-tofood safety standard for animal feed, food and pet food industries.
A-Have high homogeneity
Patented double-circle paddle rotor, the mixing homogeneity is ≥97.7% (i.e. CV≤2.3%).
B-Hygienic design
Optimized paddle-to-wall gap and fully open discharge doors, no residue, no contamination; unique air-sac seal, no leakage; optional corrosion-resistant steel design.
C-Easy maintenance
These models have a large access door for cleaning and maintenance, save time.
D-High efficiency
High mixing homogeneity with short dry mixing (60s~90s per batch) and discharging time.
Technical parameters
Model | Capacity(Kg/Batch) | Power(Kw) | Volume(m3) |
SJHS0.2A | 100 | 2.2/3.0 | 0.2 |
SJHS0.5B | 250 | 5.5/7.5 | 0.5 |
SJHS1B | 500 | 11/15 | 1 |
SJHS2C | 1000 | 18.5/22 | 2 |
SJHS3 | 1500 | 30/37 | 3 |
SJHS4A | 2000 | 37/45 | 4 |
SJHS6A | 3000 | 55 | 6 |
SJHS8 | 4000 | 37*2 | 8 |
Note: In case of adding liquid addition, 3% maximum | |||
