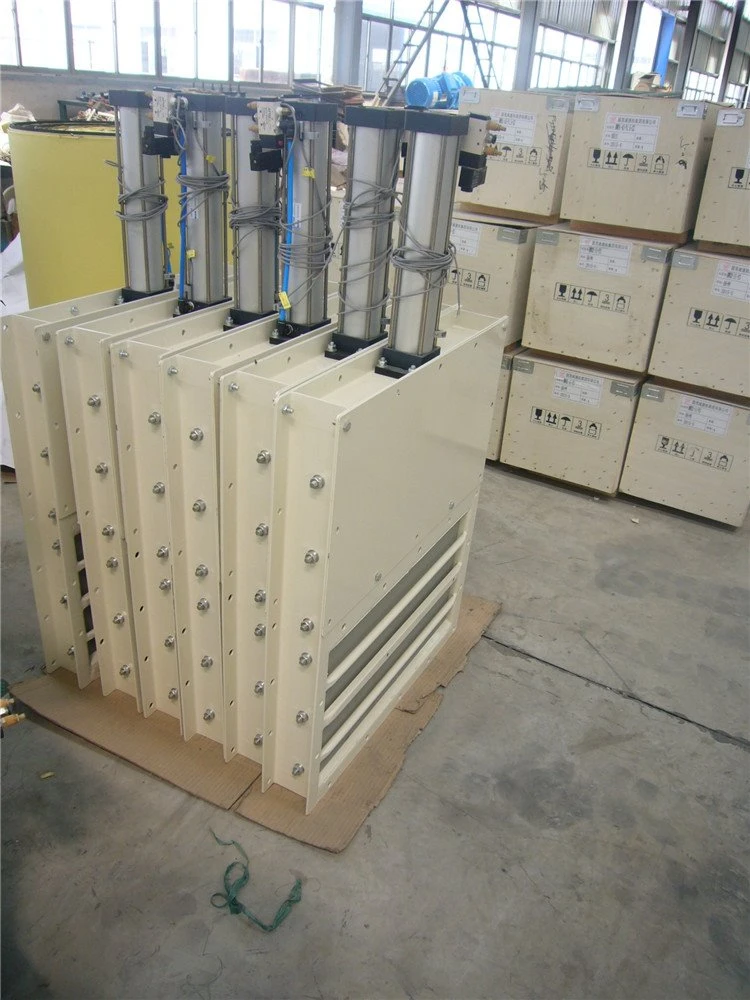

TZMD Feed electric gate
Gate valves designed and made according to the situation, with characteristics of reasonable structure, reliable performance and easy using. The produced electric gate valves can satisfy the rapid development of grain processing and feed industries.
The gate valves can be manufactured and designed according to customer requirement.
Principle of application
Bulk density of material: γ=0.2～1.8T/m3
Temperature of material: not higher than 80℃
Moisture content
Moisture content is relative with particle size and viscosity of material; generally the material, which is not loosed after agglomerated through kneading by hand, cannot be suitable
Widely used for material feeding or discharging in feed, food, flour, chemical, mineral, metallurgy, cement industries.
Application, adaptability and principle of application
Application
The pneumatic gate valve is mainly used to control the feeding and discharging of material.
Sales service
1. Reliable delivery time.
2. Strict production quality control.
3. User manuals and spare parts are provided free of charge.
Technical parameters
Model | Cylinder model | Working pressure | Magnetic switch | Theoretical thrust | Theoretical tension | Capacity |
TZMQ19*30 | DNCB-40-200-PPV-A | 0.6-12 | SM1-8-K2.5-E | 754 | 633 | 30 |
TZMQ24*30 | DNCB-40-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 754 | 633 | 50 |
TZMQ28*40 | DNCB-50-320-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 80 |
TZMQ36*50 | DNCB-50-400-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 130 |
TZMQ39*50 | DNCB-50-400-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 150 |
TZMQ46*60 | DNCB-63-500-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1870 | 1682 | 200 |
TZMQ54*70 | DNCB-63-550-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1870 | 1682 | 300 |
TZMQ63*110 | DNCB-80-700-PPV-A | 0.6-12 | SM1-8-K2.5-E | 3016 | 2721 | 500 |
Note: the above theoretical thrust and theoretical tension are calculated on a atmospheric pressure of 6 bar.
