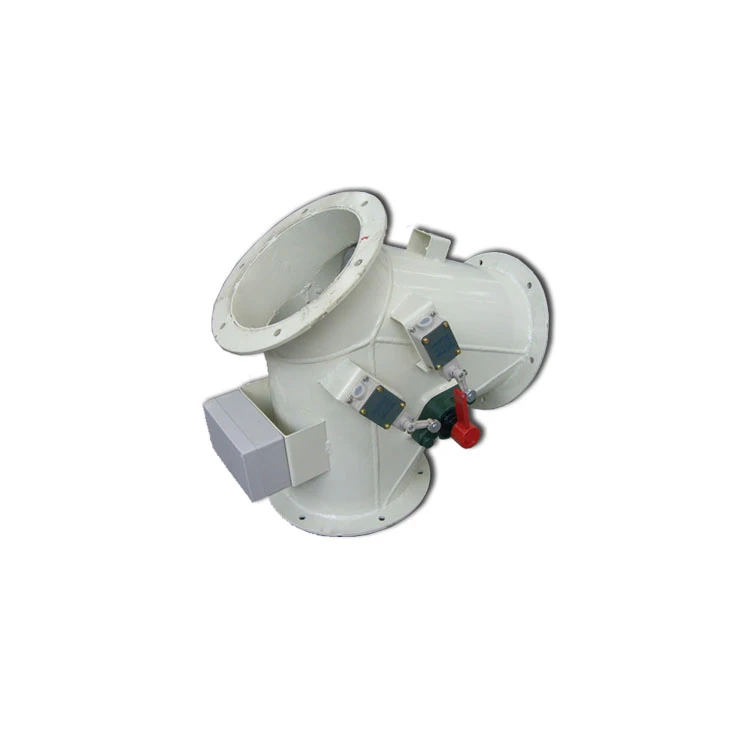

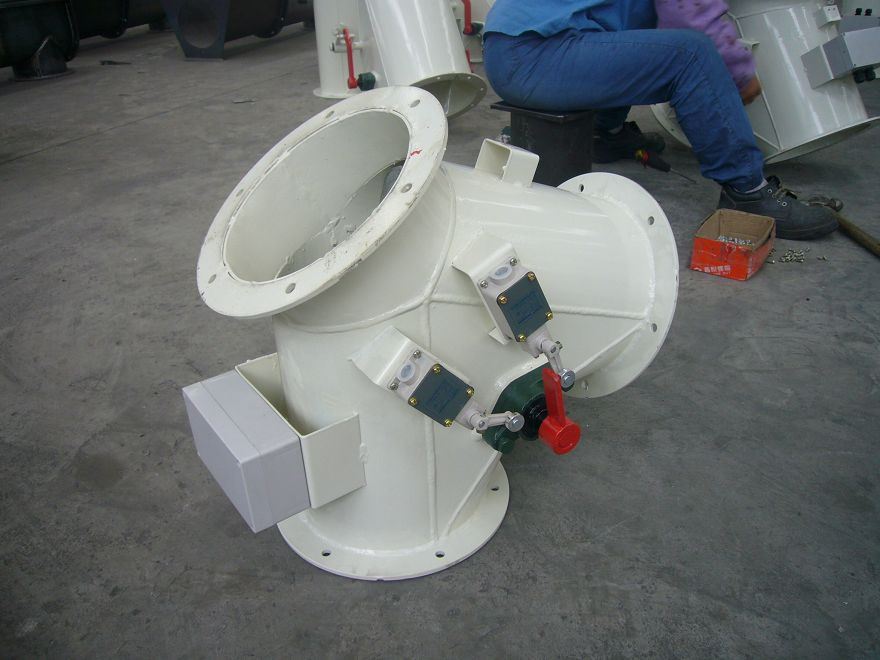

Square diverter type
Simple and compact structure, easy installation
Safe and reliable running, low maintenance
30°and 45°spouts are available
Spout area varied from 100*100 ~ 500*500 cm2
Technical parameter
Item | Pneumatic cylinder model | Working pressure | Magnetic switch | Theoretical thrust | Theoretical tension | Capacity |
TBDQ20*20/45° | DNCB-50-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 30 |
TBDQ20*20/30° | DNCB-50-200-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 30 |
TBDQ25*25/45° | DNCB-50-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 50 |
TBDQ25*25/30° | DNCB-50-200-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 50 |
TBDQ30*30/45° | DNCB-50-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 100 |
TBDQ30*30/30° | DNCB-50-200-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 100 |
TBDQ40*40/45° | DNCB-63-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1870 | 1682 | 300 |
TBDQ50*50/45° | DNCB-63-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1870 | 1682 | 500 |
TBDQ60*60/45° | DNCB-63-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1870 | 1682 | 700 |
TBDQ80*80/45° | DNCB-80-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 3016 | 2721 | 1000 |
Note: the above theoretical thrust and theoretical tension are calculated on a atmospheric pressure of 6 bar.
