Description

Technical Parameters

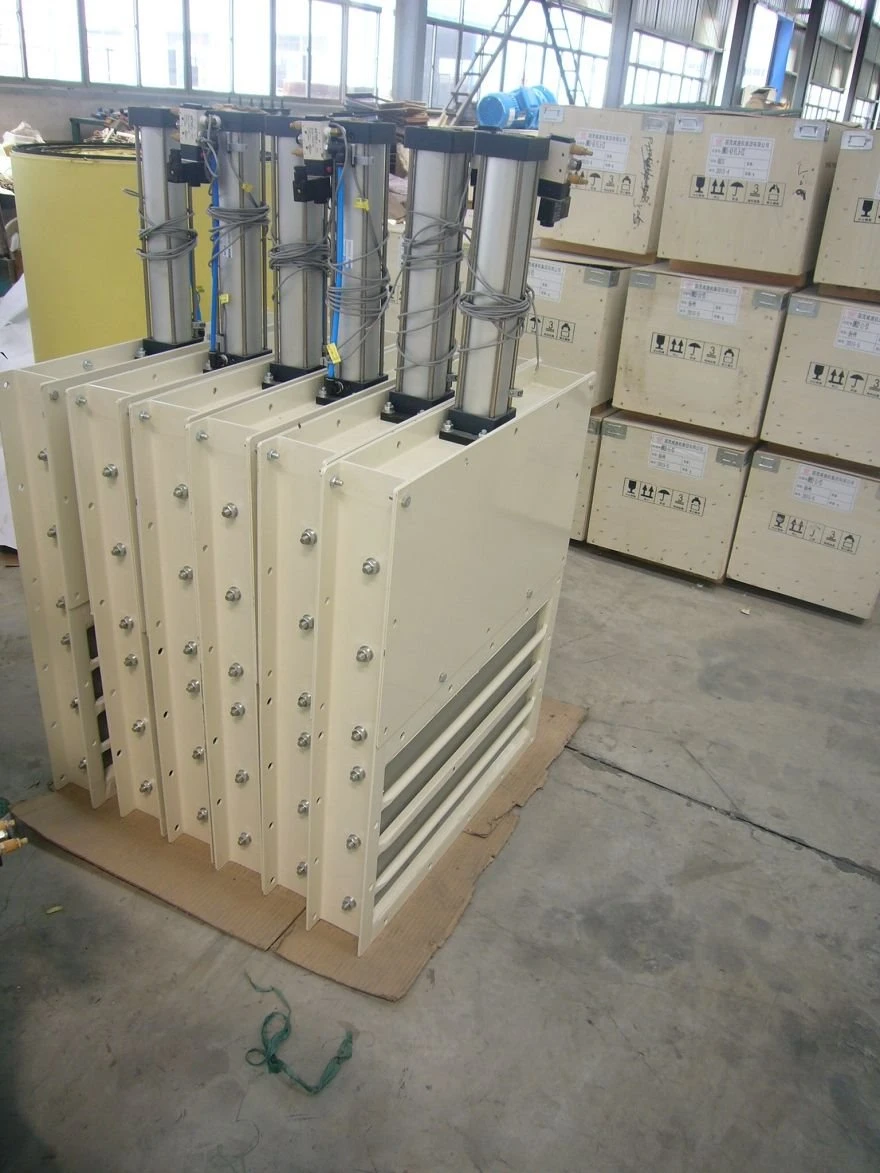

Pneumatic gate

Abrasion and corrosion of wearing parts

Sealing elements of the pneumatic gate valve can be worn because of rotation abrasion with shafts;

The Silica-gel plate shall be worn because of the friction between tipping plate and side plate of the pneumatic gate valve;

The sealing plate is worn due to rubbing with flashboard;

Besides structure and material of machine, conveyed material also can rub the pneumatic gate valve in a great degree;

Machine and parts can be treated according to local laws and rules after being discarded.

Description

Heavy duty construction, simple and reliable for years of operation

Easy installation, low maintenance

Spout area varied from 100x100 ~ 800x800 cm²

Widely used for material feeding or discharging in feed, food, flour, chemical, mineral, metallurgy, cement industries.

Application, adaptability and principle of application

Application

The pneumatic gate valve is mainly used to control the feeding and discharging of material.

Adaptability

This equipment is widely used in gain, flour, feed, oilseed and food processing mill and metallurgical, cement and chemical industry etc.

Technical parameters

Model	Cylinder model	Working pressure (Bar)	Magnetic switch	Theoretical thrust (N)	Theoretical tension (N)	Capacity (T/h)
TZMQ19*30	DNCB-40-200-PPV-A	0.6-12	SM1-8-K2.5-E	754	633	30
TZMQ24*30	DNCB-40-250-PPV-A	0.6-12	SM1-8-K2.5-E	754	633	50
TZMQ28*40	DNCB-50-320-PPV-A	0.6-12	SM1-8-K2.5-E	1178	990	80
TZMQ36*50	DNCB-50-400-PPV-A	0.6-12	SM1-8-K2.5-E	1178	990	130
TZMQ39*50	DNCB-50-400-PPV-A	0.6-12	SM1-8-K2.5-E	1178	990	150
TZMQ46*60	DNCB-63-500-PPV-A	0.6-12	SM1-8-K2.5-E	1870	1682	200
TZMQ54*70	DNCB-63-550-PPV-A	0.6-12	SM1-8-K2.5-E	1870	1682	300
TZMQ63*110	DNCB-80-700-PPV-A	0.6-12	SM1-8-K2.5-E	3016	2721	500

Note: the above theoretical thrust and theoretical tension are calculated on a atmospheric pressure of 6 bar.
