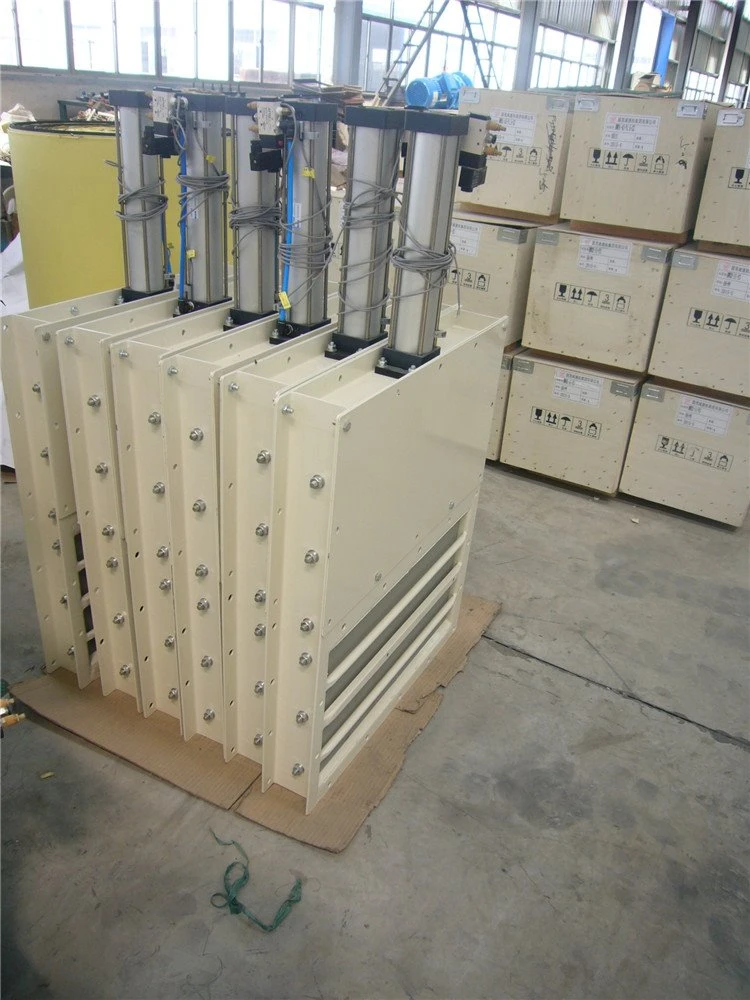

TZMS Series gate biomass
Heavy duty construction, simple and reliable for years of operation
Easy installation, low maintenance
Spout area varied from 100x100 ~ 800x800 cm²
Widely used for material feeding or discharging in feed, food, flour, chemical, mineral, metallurgy, cement industries.
Application, adaptability and principle of application
Application
The pneumatic gate valve is mainly used to control the feeding and discharging of material.
Principle of application
Bulk density of material: γ=0.2～1.8T/m3
Temperature of material: not higher than 80℃
Explosion protection
General cleaning
a. It is an important condition for safety operation to keep the places with flammable dust clean.
b. Don’t stack bagged or bulk materials among the machines.
c. All the conveying equipment, cyclone separators and dust collectors shall be kept in good condition to prevent dust emission to everywhere. Especially prevent the pipes and top covers from any leakage.
d. Clean different kinds of dust frequently and completely to reduce risks from dust explosion.
e. No deposited dust on the motors.
Regular inspection and maintenance
Regularly check all the main shafts and bearings once a week at least to avoid heat generation, and regularly add lubricating oil.
Technical parameters
Model | Cylinder model | Working pressure | Magnetic switch | Theoretical thrust | Theoretical tension | Capacity |
TZMQ19*30 | DNCB-40-200-PPV-A | 0.6-12 | SM1-8-K2.5-E | 754 | 633 | 30 |
TZMQ24*30 | DNCB-40-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 754 | 633 | 50 |
TZMQ28*40 | DNCB-50-320-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 80 |
TZMQ36*50 | DNCB-50-400-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 130 |
TZMQ39*50 | DNCB-50-400-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 150 |
TZMQ46*60 | DNCB-63-500-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1870 | 1682 | 200 |
TZMQ54*70 | DNCB-63-550-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1870 | 1682 | 300 |
TZMQ63*110 | DNCB-80-700-PPV-A | 0.6-12 | SM1-8-K2.5-E | 3016 | 2721 | 500 |
Note: the above theoretical thrust and theoretical tension are calculated on a atmospheric pressure of 6 bar.
