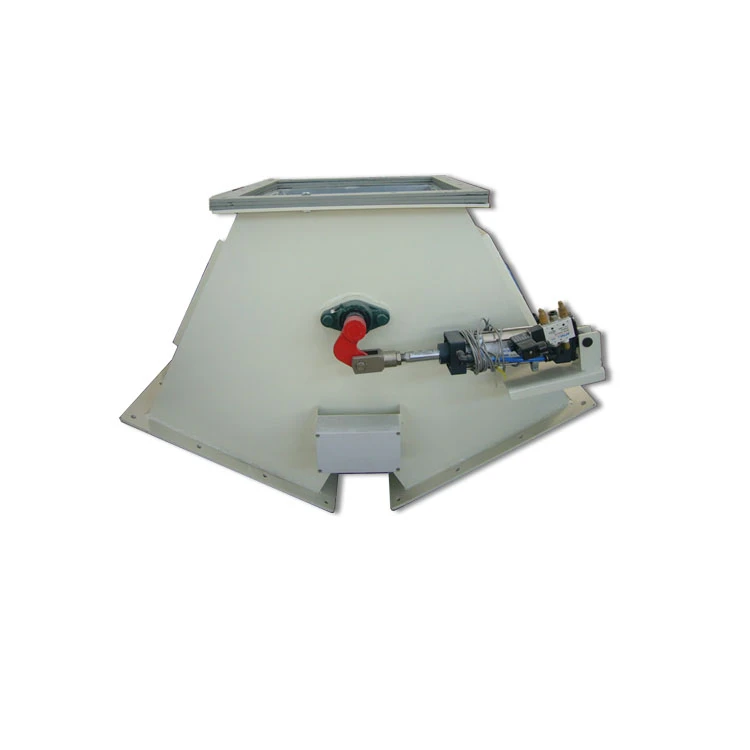

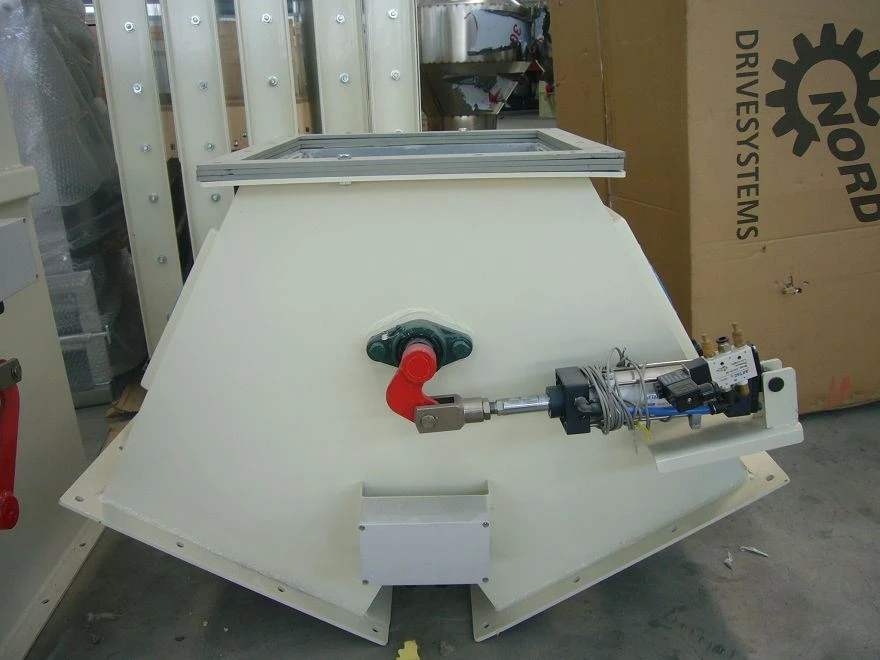

TBDD Series electric square type diverter
Simple and compact structure, easy installation
Safe and reliable running, low maintenance
30°and 45°spouts are available
Spout area varied from 100*100 ~ 500*500 cm2
Safety marks and description
The following safety marks are labeled on the housing for reminding customers to ensure safety of personnel and machine when operating, and all operation rules shall be strictly obeyed.
Safety mark "Beware of injury from the machine" at inlet and outlet reminds that DO NOT start up the machine for commissioning and operation before the equipment is completely linked with the system.
Technical parameter
Item | Pneumatic cylinder model | Working pressure | Magnetic switch | Theoretical thrust | Theoretical tension | Capacity |
TBDQ20*20/45° | DNCB-50-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 30 |
TBDQ20*20/30° | DNCB-50-200-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 30 |
TBDQ25*25/45° | DNCB-50-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 50 |
TBDQ25*25/30° | DNCB-50-200-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 50 |
TBDQ30*30/45° | DNCB-50-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 100 |
TBDQ30*30/30° | DNCB-50-200-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 100 |
TBDQ40*40/45° | DNCB-63-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1870 | 1682 | 300 |
TBDQ50*50/45° | DNCB-63-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1870 | 1682 | 500 |
TBDQ60*60/45° | DNCB-63-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1870 | 1682 | 700 |
TBDQ80*80/45° | DNCB-80-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 3016 | 2721 | 1000 |
Note: the above theoretical thrust and theoretical tension are calculated on a atmospheric pressure of 6 bar.
