Wood pellet distributor
Type composition and its meanings
T F P X □-□A
T----universal machinery for grain milling and edible oil processing
FP----distributor
X----swiveling □-□----Number of discharging pipes and their diameter (mm)
A----improved model
Working principle and procedure
A geared motor drives the main shaft, and the main shaft then drives the material guiding elbow to move along the guide track. The switch is turned as required in control circuit and then the motor is started up. When the material guiding elbow moves to the designated position, power supply is cut off by the limit switch immediately, the guiding elbow thus stops in the designated positioning slot for discharging. With the effect of positioning slot, the outer seal ring and clamping seal ring tightly press against the inner wall of the lower body, forming a sealing space, and then material discharging begins. The lower housing is equipped with a dust outlet, through which the dust can be removed from the machine.

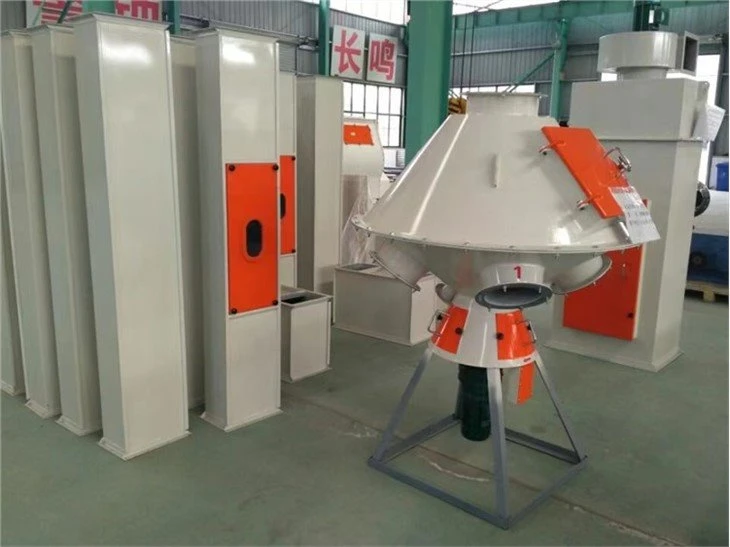

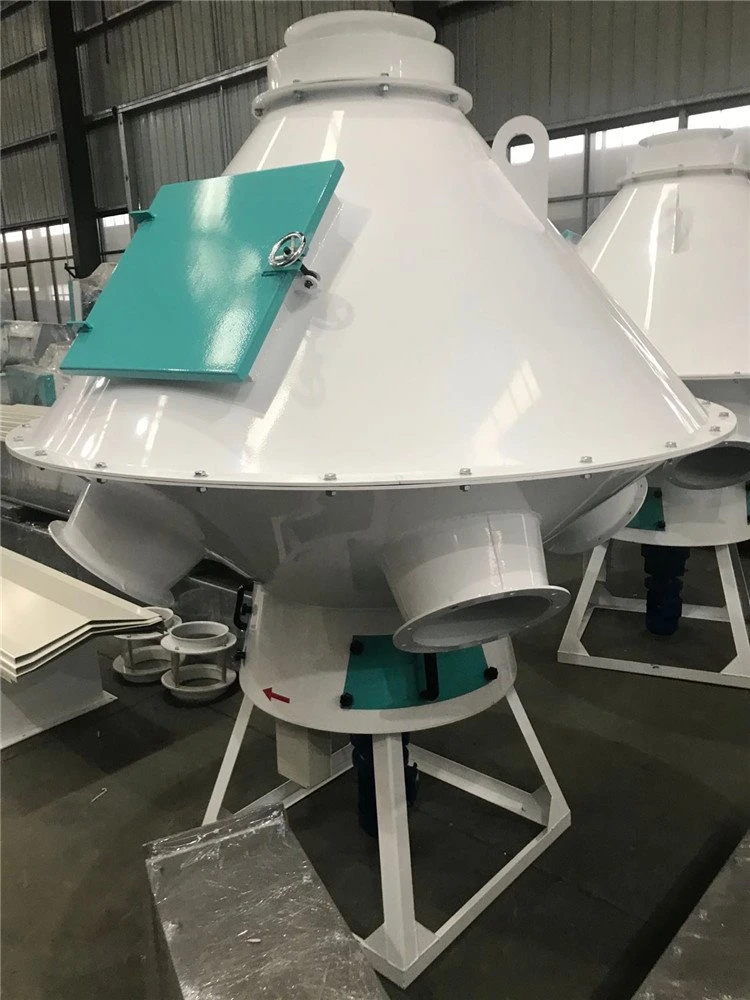

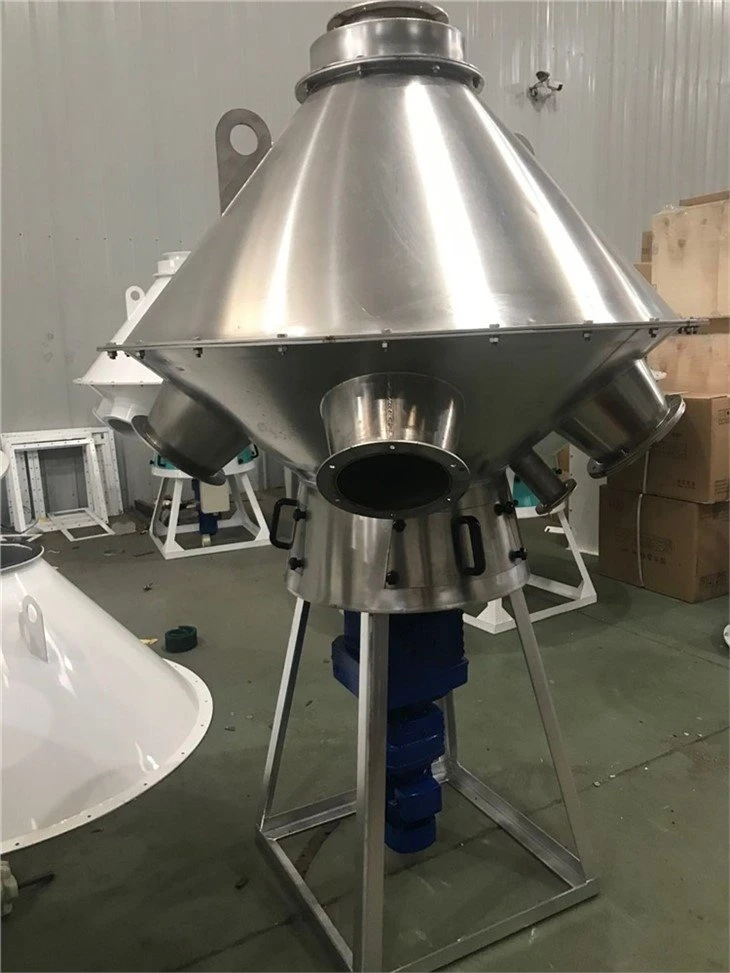

TFPX Rotary distributor can be made in stainless steel or carbon steel, according to customer request.
This model is suitable for distributing granular and powdery materials.
Have a self-locking structure, accurate and reliable positioning with guiding pipe, automatic dust cleaning in the machine, compact structure, small space occupation, easy maintenance.
Have a heavy duty construction, simple and reliable operation.
Easy installation and low maintenance
Spout area varied from 100*100-800*800cm2.
Widely used for material feeding or discharging in feed, food, flour, chemical, mineral, metallurgy, cement industries
Product main features
1. The TFPX series dispenser is easy to operate and easy to install and maintain.
2. The transmission adopts the direct drive of the cycloid reducer, the structure is compact, and the discharge pipe rotates smoothly.
3. The positioning of the discharge pipe is accurate and reliable, avoiding the material silo. The interior is equipped with a cleaning brush to avoid the accumulation of leaking material.
4. After the discharge pipe is positioned, the seal with the distribution plate is reliable.
Technical parameters
Model | TFPX□-200A | TFPX□-250A | TFPX□-300A | TFPX□-320A | TFPX□-420A |
Powdery materials | 30 | 40 | 60 | 70 | 120 |
Granular materials | 40 | 60 | 80 | 90 | 140 |
Power(Kw) | 0.55-0.75 | 0.55-0.75 | 0.75 | 0.75 | 0.75 |
