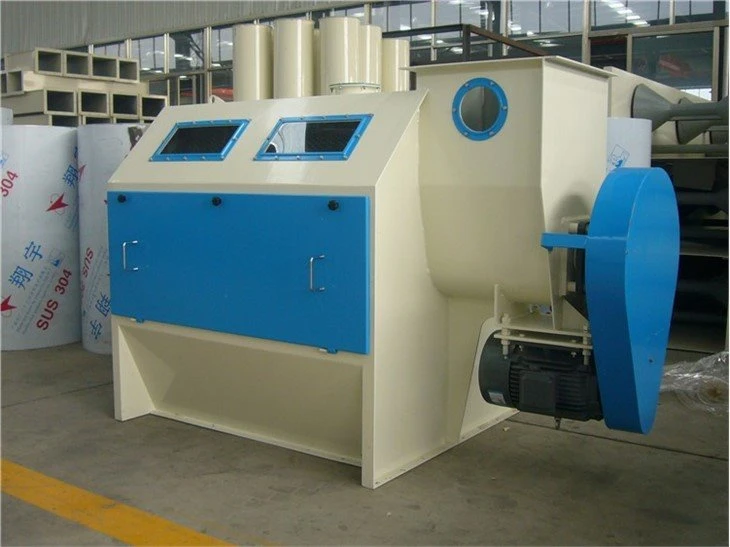

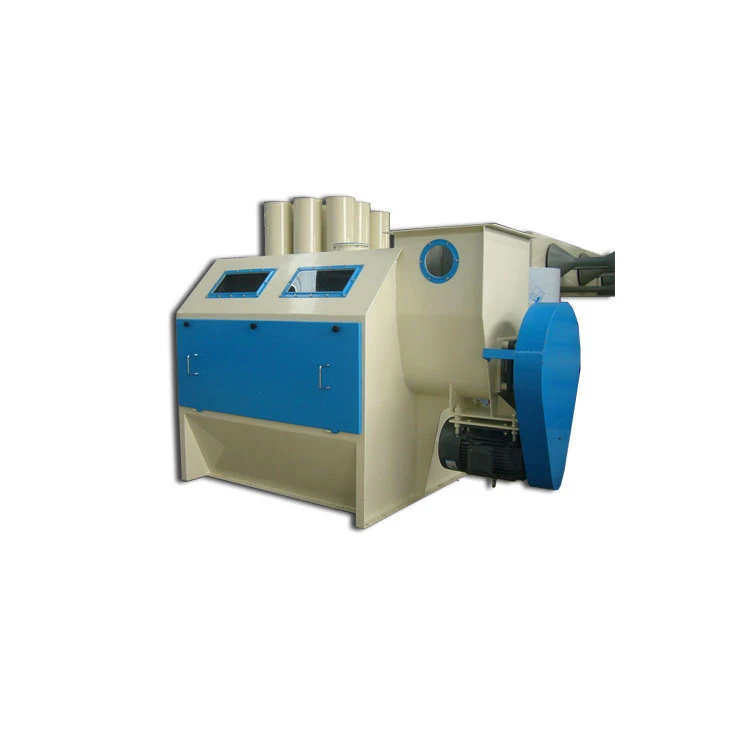

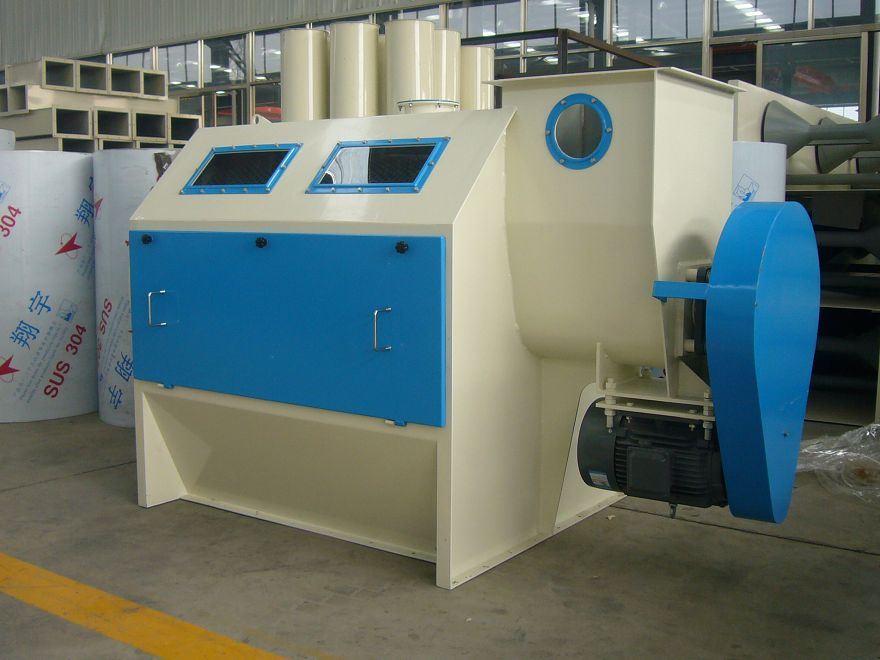

TCQYS Double-deck Drum Pre-cleaner

Double-deck poultry feed pre-cleaner

TCQYS Double-deck drum type pre-cleaner

Structured with double decks and an aspiration system

Capable to separate large, small and light impurities

Aspiration system for assistant cleaning

Mainly used for granular material cleaning in industries such as grain storage, food, chemical, mining and so on

Application and adaptability

TCQY series drum pre-cleaner is widely used for raw materials receiving in flour mills, feed mills, depots and other industries. It is mainly used for removing large impurities as rice straw, wheat straw, hemp, sheet paper, clump, corn leaves, corn ear and etc., so as to protect the subsequent machines and equipments in the process system from damage.

Characteristics

This drum pre-cleaner is characterized by high output, good cleaning effect, low power consumption, simple structure, small floor area and etc.

The equipment is complete with an access door, which is convenient for routine repair and maintenance, as well as for replacement of the sieve drum. Two observation windows are equipped at the side face and top cover, which makes it possible to observe operation status of the equipment.

Appropriate sieve apertures can be selected as per the property of material, so as to get the optimum separation effect.

Working conditions

Physical environment

Temperature: -15～40℃

Relative humidity: not exceed 90%

Height above sea level: not exceed 1,000m

The working voltage should be stable and deviation not more than ±5%.

Safety points

-It is prohibited to open the operating gate until the machine has been fully stopped.

-The main switch must be shut off and locked for all maintenance and inspection work.

-Electric installation and the treatment of conducting parts can only be done by specialized persons in accordance with the related electric safety standards.

-The double-deck drum scalper must be run on the condition that all accident precaution regulations are strictly observed. Whoever takes off guarder or make it dysfunctional should be responsible for the safety result.

-In case maintenance and inspection work should be done with a welder or other tools that can generate sparks, strict safety precautions must be taken against dust explosion and combustion (see “Explosion protection).

-When the machine is under stoppage, attention must be taken to prevent the double-deck drum scalper from being started by any accidental starting mode.

-It is not allowed to take off the coupling guard.

-When the machine is running, it is strictly forbidden to put fingers near the running components, such work as inspection, maintenance and cleaning etc can not be done until the running components (rotary distributor) have been completely stopped.

-Safety of the electric system

Before the electric circuit is cut off, it is strictly prohibited to open the terminal box for avoiding electric shock.

Technical parameters
