Grains bucket elevator

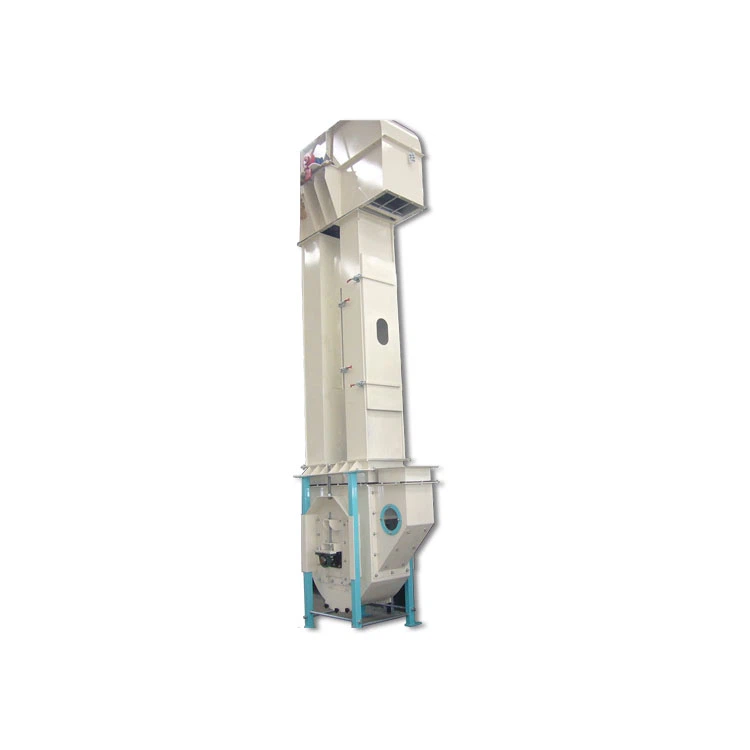

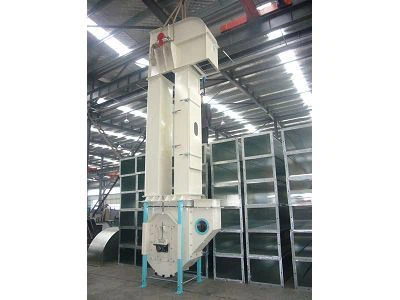

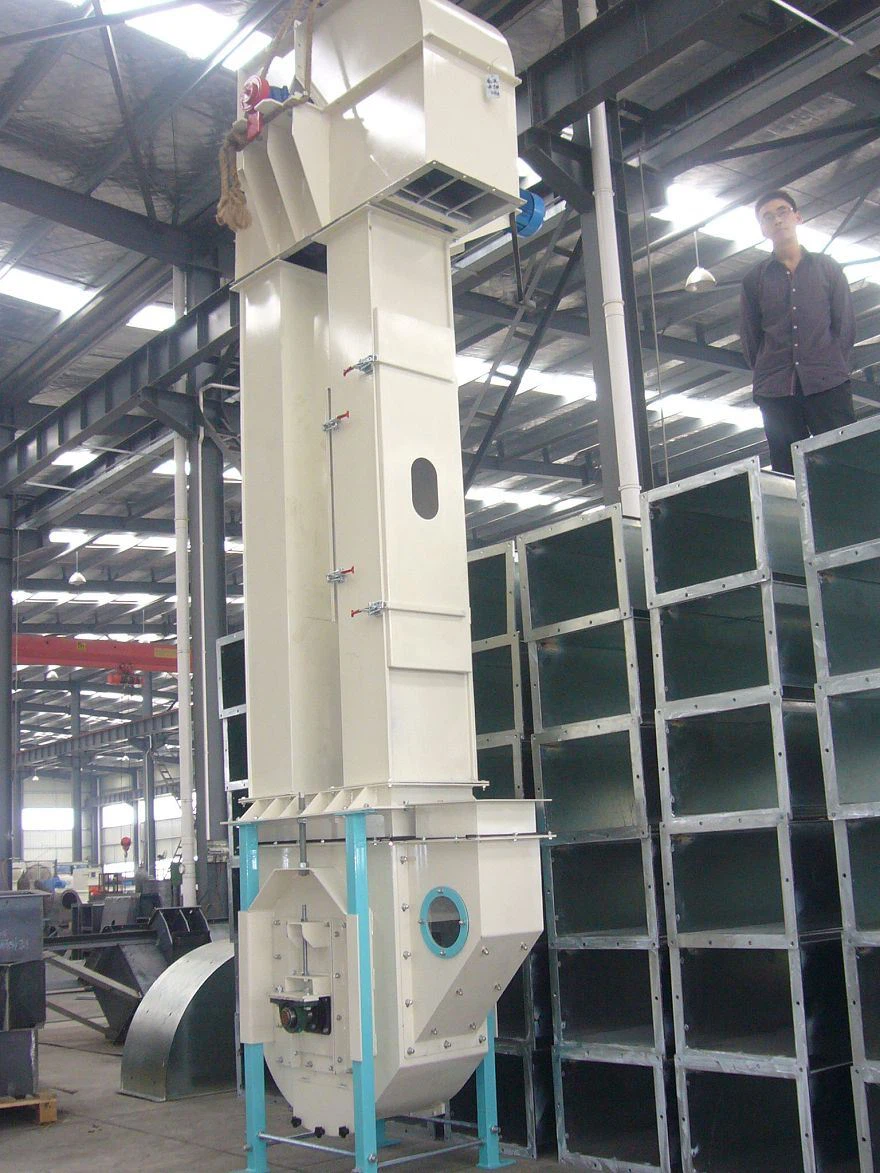

TDTG Bucket elevator
These models have compact structure, small footprint.
Excellent sealing performance and venting in case of dust explosion.
Optional devices for preventing the sideslip and back-stop to ensure safety and belt alignment.
Widely used for the vertically conveying of powdery or granular bulk material in grain terminals, port terminals as well as such industries as feed, flour, rice, edible oil etc.
Application and adaptability
Bucket elevator is vertical continuous conveying equipment, and mainly used for conveying powdery materials in compound feed mills and premix feed mills.
Series bucket elevator is applicable to conveying powdery materials, granular materials and small lump materials. It can be used for conveying semi-finished and finished products from raw grain in processing plants, especially applicable to conveying materials during production in feed and grain processing plants, as well as conveying in warehouse, oil plant and etc.
Characteristics
The boot section can be installed with forward or backward feed hopper according to customer’s requirements;
The working components are mechanically bended, riveted and welded, and have good sealing performance;
The thick and flat rubber belt used as the traction belt is characterized by high strength, strong traction force, low extensibility, high durability and reliability;
The head section is equipped with explosion proof vent that can effectively prevent dust explosion;
It is possible to use straight-coupling drive of cycloid pin-gear speed reducer or secondary drive between speed reducing box and chain wheel (or V-belt), the driving is stable and reliable with low noise and easy for installation and repair.
It is possible to install alarm devices for speed measurement and sideslip as required by customers, so as to ensure safe and normal production; an automatic backstop device can be equipped against blockage of materials due to power failure;
The head section and boot section are equipped with hosting mechanism for the convenience of dismantling, mounting and maintenance.
The mounting height is optional in allowable range.
Technical parameters
Model | Capacity(m3/h) |
TDTG 36/23 | 20 |
TDTG 36/28 | 35 |
TDTG40/23 | 40 |
TDTG40/28 | 55 |
TDTG50/23 | 60 |
TDTG50/28 | 80 |
TDTG50/32 | 110 |
TDTG60/28 | 120 |
TDTG60/33 | 200 |
TDTG80/33 | 300 |
TDTG80/46 | 420 |
TDTG100/33*2 | 670 |
TDTG100/46*2 | 820 |
TDTG60/28 | 120 |
