Main performance features
TFPX series distributor is easy of operation, convenient for installation and maintenance; and the access door provided is convenient for daily maintenance and repairs.
Directly driven by a bevel gear speed reducer, it is characterized by its compact structure and smooth swiveling of the guiding elbow for material receiving.
With the help of a limit switch and positioning slot to make the guiding elbow correctly positioned and avoid any spilling of materials. The outer rubber ring and rubber clamping ring are pressed against the inner wall of the lower casing with good sealing performance after the guiding elbow is positioned in the designated positioning slot.
Working conditions
Physical Environment
Temperature: -15～40℃
Relative humidity: not higher than 90%
Elevation: not higher than 1000 m
The working voltage should be stable with a deviation not more than ±5%.

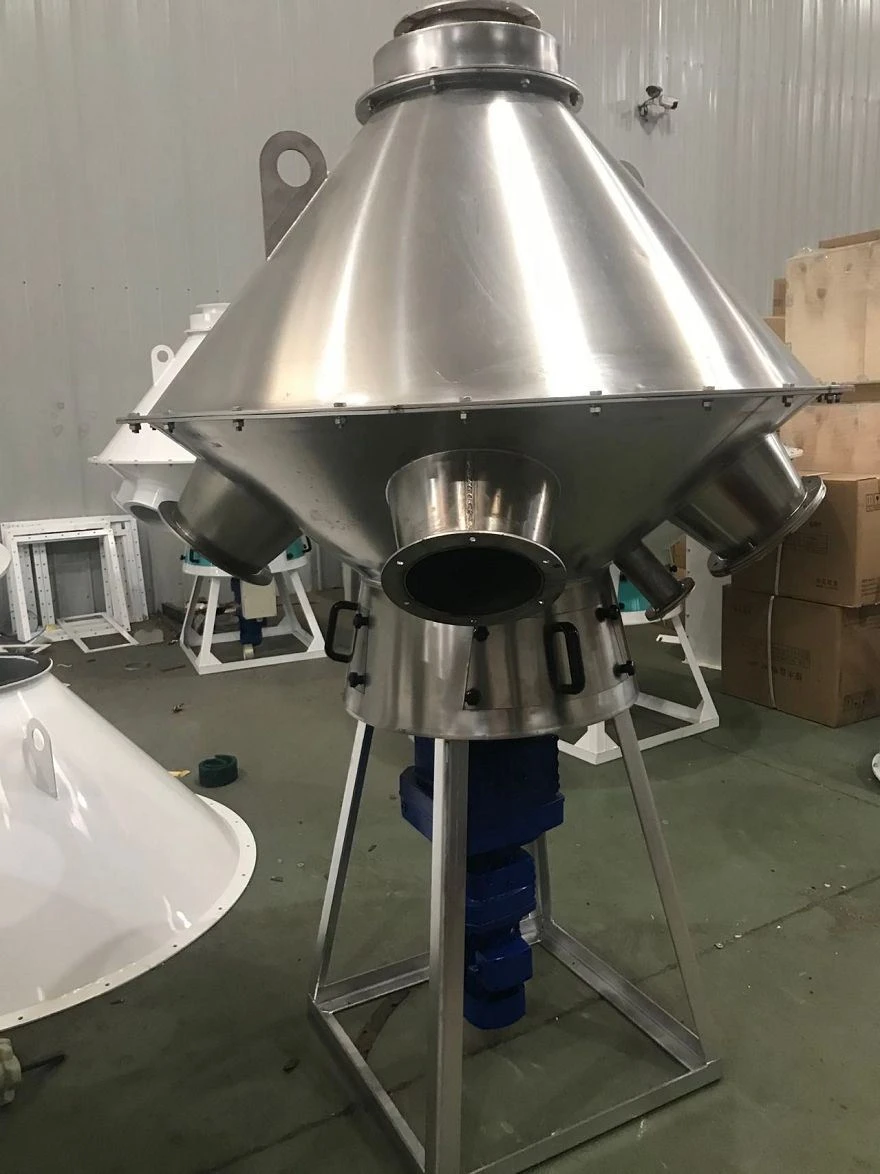

TFPX Rotary distributor can be made in stainless steel or carbon steel, according to customer request.
This model is suitable for distributing granular and powdery materials.
Have a self-locking structure, accurate and reliable positioning with guiding pipe, automatic dust cleaning in the machine, compact structure, small space occupation, easy maintenance.
Have a heavy duty construction, simple and reliable operation.
Easy installation and low maintenance
Spout area varied from 100*100-800*800cm2.
Widely used for material feeding or discharging in feed, food, flour, chemical, mineral, metallurgy, cement industries
Product main features
1. The TFPX series dispenser is easy to operate and easy to install and maintain.
2. The transmission adopts the direct drive of the cycloid reducer, the structure is compact, and the discharge pipe rotates smoothly.
3. The positioning of the discharge pipe is accurate and reliable, avoiding the material silo. The interior is equipped with a cleaning brush to avoid the accumulation of leaking material.
4. After the discharge pipe is positioned, the seal with the distribution plate is reliable.
Technical parameters
Model | TFPX□-200A | TFPX□-250A | TFPX□-300A | TFPX□-320A | TFPX□-420A |
Powdery materials | 30 | 40 | 60 | 70 | 120 |
Granular materials | 40 | 60 | 80 | 90 | 140 |
Power(Kw) | 0.55-0.75 | 0.55-0.75 | 0.75 | 0.75 | 0.75 |
