Liquid adding system

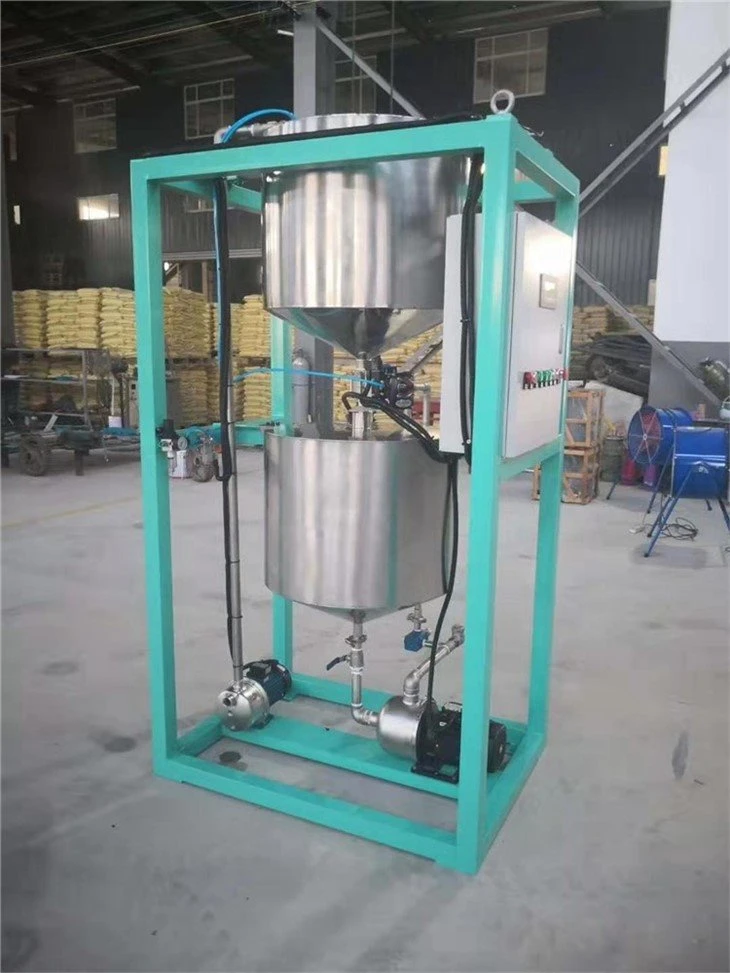

SYTC Scale liquid adding system
Load-cell weighs, automatic control system, precise and reliable.
Widely used for adding cohesive liquid such as molasses, fat or oil, phospholipids, etc. into a batch mixer.
Fully automatic control by computerized system, tolerance in adding operation ≤1%, in addition, liquid level and temperature can be regulated automatically.
Triple insurance, accurate and reliable. For model SYTZ an intermittent fluid addition system, a supplementary supercharging device can be equipped to prevent the oil nozzles from dropping oil when spraying stops, resolving the problem of material agglomeration.
Attention points
- Whenever maintenance or repairing is done, the main switch of power supply must be cut off first, so as to prevent the motor from accidental staring.
-All related employees should receive safety training. The management department should be in charge of it, and the safety regulations from national, local or the others from internal enterprise should be observed.
-The machine must not be used for the applications out of applicative scope.
-The safety marks must be kept clean and cannot be taken off or covered.
-The safety guards can never be dismounted, covered or overlapped willfully, and can never be opened until the machine has completely stopped and the machine can only be started when these safety guards are in good order functionally.
-The damaged parts must be repaired or replaced promptly.
-For transportation, it is not allowed to damage the equipment by bundling. In case there is any machine damage or missing of parts found in transportation, it should be reported to the management immediately.
-Prior to installation, all machine parts must be kept in their original packages. The machine parts and packing boxes should be properly covered and stored in places sheltered from rain, sunning and damp. The permissible load of hoister should be higher than the equipment gross weight. As hoisting, only the sustained center assigned on the machine can be used; the hoisting ropes must be fixed correctly and reliably; and no one is allowed to be under the equipment being hoisted.
-In installation, enough space should be reserved for future maintenance and replacement of the equipment.
Technical parameters
Model | SYTC50 | SYTC100 | SYTC150 | SYTC200 |
Adding rate (Kg/min) | 50 | 100 | 150 | 200 |
Adding precision (%) | 0.5 | 0.5 | 0.5 | 0.5 |
Power(Kw) | 2.2 | 3.0 | 5.5 | 5.5 |
