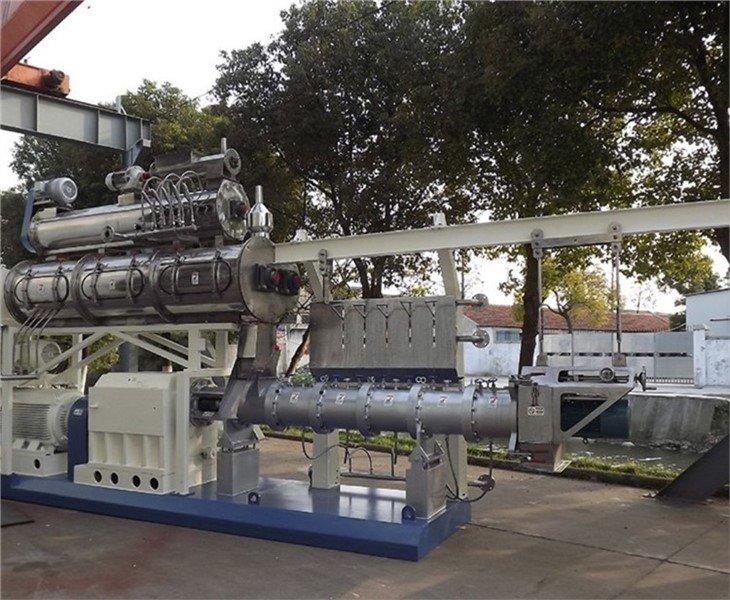

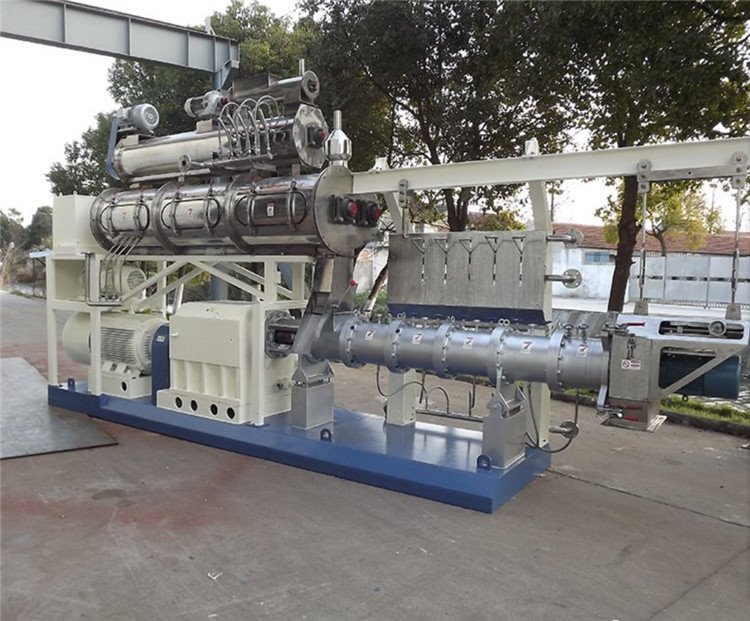

Twin screw Pet food extrusion
These models have highly efficient extruder for aqua-feed, food, pet food and raw material treatment, especially sticky formulations.
A-Easy operation
PLC and touch screen for convenient control; by-pass provided for avoiding blockage; easy operation, precise and reliable.
B-High efficiency
Optimal chamber groove and screw flight profiles, minimum SME input; efficient DDC conditioner and jacketed barrel with stabilized and facilitated extrusion, maximum energy utilization; unique suspending cutter, adjustment without down time.
C-High flexibility
Modularized barrel and screw structure with many add-ons, adaptable to varied high-fat or -moisture formulations; convenient control of temperature, pressure and density, minimizing reconfiguration acquired
Feeder
The feeder is mainly used for feeding the material to conditioner in a certain amount, its equipped motor is a variable frequency control motor, and the revolution can be adjusted based on actual production condition. In order to fulfill the requirement of cleaning, the upper barrel is equipped with a cleaning gate.
Diameter cylinder conditioner
Diameter cylinder conditioner is applied to this system; the conditioner is made of all stainless steel and mainly composed of housing, agitator shaft and driving support device. The main features are shown as follows: two agitator shafts with different diameters and revolutions agitate material through back cross movement, agitation effect is good, so that material, steam, water or other liquids can be sufficiently mixed; and a housing with large capacity is used, so that material can be kept long enough under a certain temperature and moisture in the conditioner, so as to achieve pre-curing.
Technical parameters
Model | 90*2Ⅰ | 120*2Ⅰ | 150*2Ⅰ |
Capacity(T/h) | 2.0-3.5 | 5.2-8.0 | 8.0-14.00 |
Screw diameter(mm) | 100 | 132 | 166 |
L/D | 20:1 | 16:1/20:1 | 16:1 |
Main drive(Kw) | 110/132 | 160/200 | 315/355/400 |
Conditioner power(Kw) | 15 | 18.5+7.5 | 11+22 |
Feeder power(Kw) | 1.5 | 1.5/2.2/3.0 | 3.0/4.0 |
Note
1. The models with the suffix “I” in the type code are specialized for aqua-feed production.
2. Above data only refers to aqua-feed extrusion.
