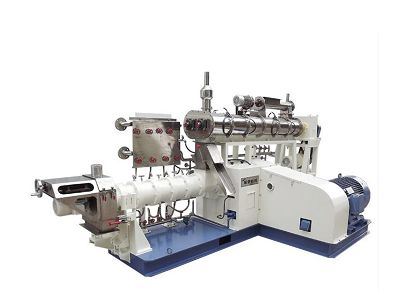

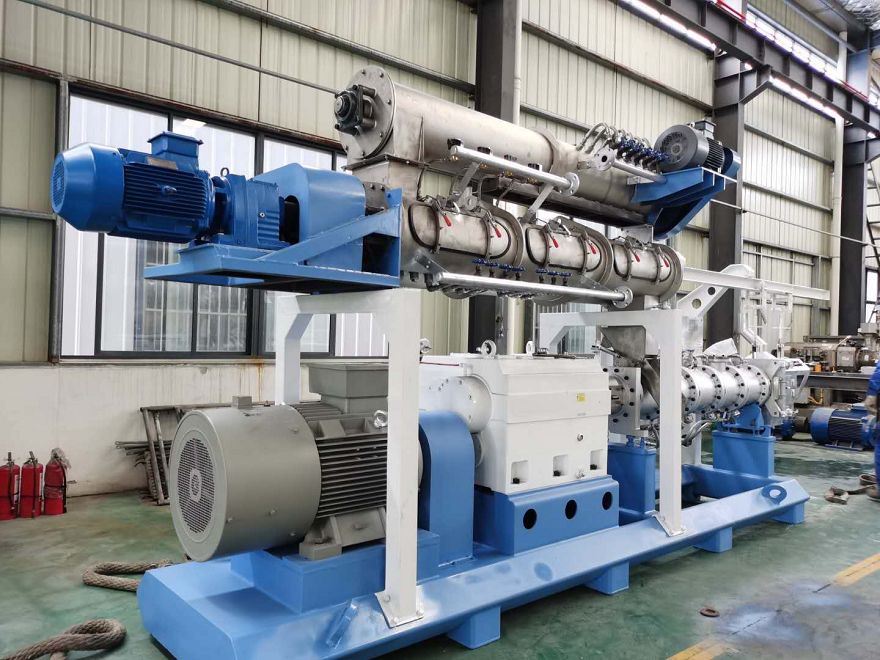

Aquafeed Single Screw Extruder

Single-screw extrusion

This model is a high-efficient extruder for aqua-feed, food, pet food and raw material treatment.

A-Simple operation

Leading extrusion technology and intelligent control

By-pass for avoiding blockage

Simple operation, precise and reliable

B-High efficiency

DDC conditioner and optimal modular extruder screw & chamber, minimum Specific Mechanical Energy (SME) input

Recoverable thermal energy, maximum energy utilization

Unique suspending cutter

Replacement and adjustment without downtime

C-Wide production range

Controllable temperature, pressure and density thanks to modularized design and many add-ons, minimizing reconfiguration acquired.

D-Satisfy product quality

Uniform extruded pellets with high fat absorption

Unique visual appearance

Excellent environmental and sustainable

Description

-Cutting device is hoisted on frame body through two hoisting connection components, its height can be adjusted through rotating the hoisting connection components;

-Cutting device can be moved forward and backward alongside rail on the frame body through roller on the hoisting connection components;

-Cutting device is positioned on the extruder through four positioning pins in production, and locked by four corresponding knock grabs;

-When adjusting the blade forward and backward, rotate the adjusting hand wheel, adjusting screw fixed with the adjusting hand wheel drives the sliding sleeve to slide forward and backward, so that the blade can be adjusted forward and backward;

-Cutting device is composed of cutting knife and variable-speed drive. Length of material to be cut will be controlled through adjusting rotation speed of the cutting knife. A variable frequency speed control motor is applied for variable-speed driving, and the cutting knife bar drives the cutting knives to rotate. 165 extruder provides two kinds of cutting knife, one adopts thick blade used for cutting large size expanding material (diameter is more than 2 mm), another is elastic thin blade used for cutting small size expanding material (diameter is not more than 2mm).

Features

-It can adjust rotation speed of the cutting knife and can adjust the distance between the cutting knife and end face of the die plate when the extruder is running;

-It is easy for installation, as well as can reduce working strength and working time.

Technical parameters
