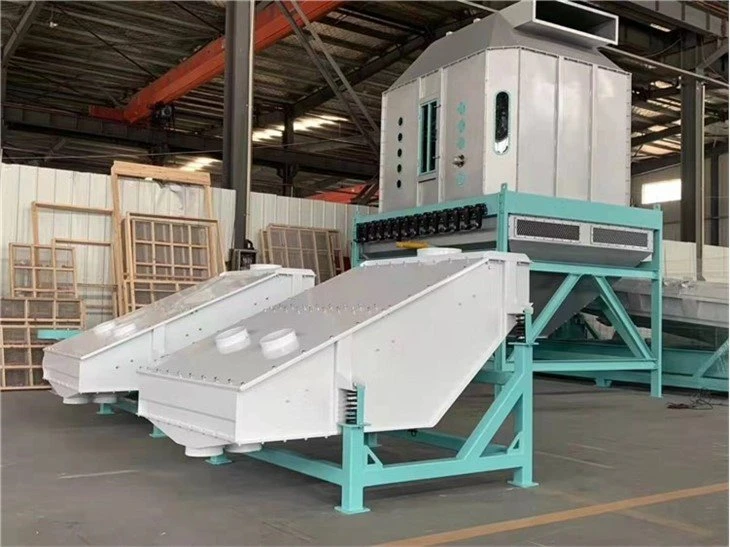

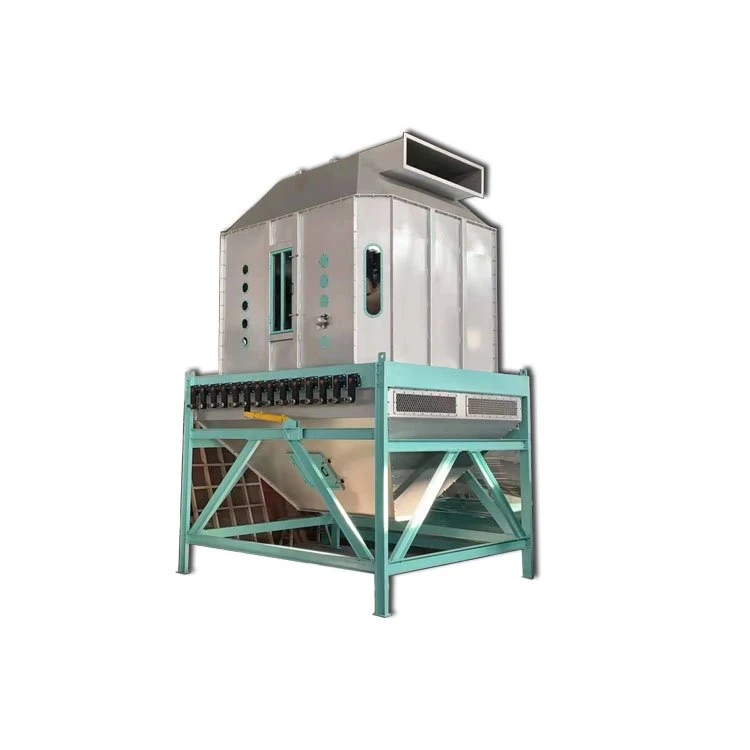

Poultry feed counterflow cooler
Suitable used for cooling granular feed, especially the extruded pellets.
Compact structure, small space required.
Octagonal cooling bin, eliminating death corner
Hydraulic flexible driven tipping plates for smooth and controllable discharging rate.
Low maintenance required and low energy cost
Structural features and working principle
This chapter mainly introduces the overall structure and working principle of the cooler.
Overall structure
The cooler is mainly composed of a base, a top cover, a spreader, a cooling bin, a discharging fence, a flow adjusting fence, a driving device for discharging, a flow regulator, a hopper and so on.
Technical parameters
Model | Capacity(T/h) | Power(Kw) |
SLNF19*19A | 10 | 1.5 |
SLNF22*22A | 15 | 3.0 |
SLNF24*24A | 15-20 | 3.0+0.75 |
SLNF28*28A | 20-25 | 3.0+0.75 |
SLNF32*32A | 35 | 5.5+0.75 |
SLNF36*36A | 42 | 5.5+0.75 |
