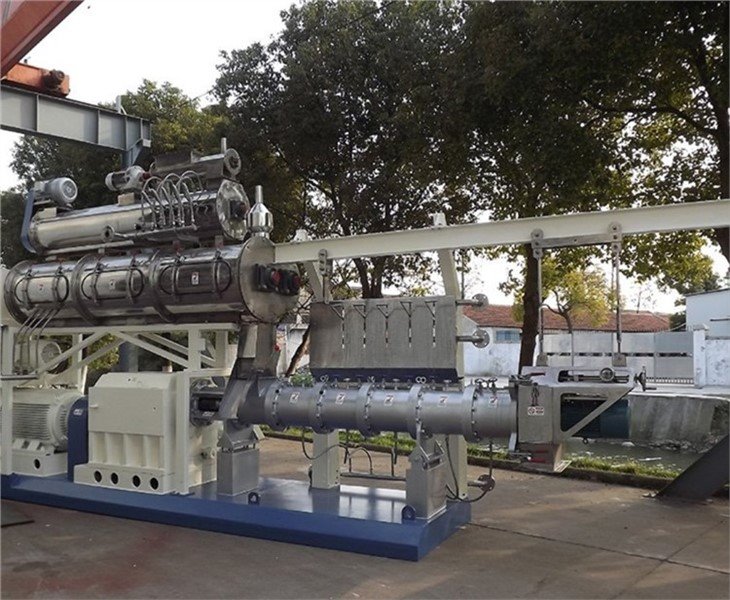

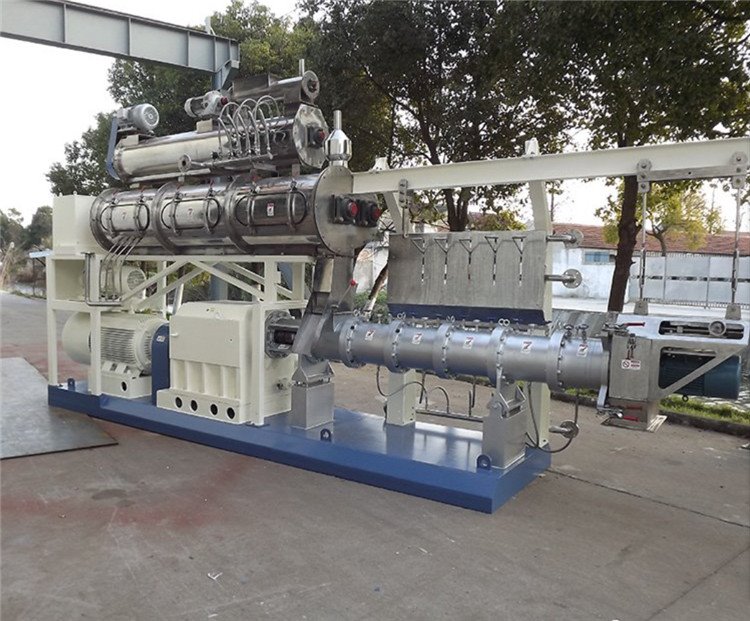

Twin screw extrusion
These models have highly efficient extruder for aqua-feed, food, pet food and raw material treatment, especially sticky formulations.
Easy operation, high efficiency, high flexibility and applicability
Features
The extrusion provides for production of many products with great superiority in comparison with other technologies. Because it integrates functions of different equipments in a single process when extruding in most cases, the procedures of mixing, extruding, cutting, cooking, forming and drying process in a certain degree can be carried out at the same time.
In comparison with single screw one, twin screw extruder has a great superiority in a series of performance indexes such as curing degree of product, pellet uniformity, pellet surface roughness, ingredient scopes applicable for processing and so on.
Multi-function of the equipment
Special assembly screw structure is applied, so that various products can be produced if only simply changing screw arrangement or changing manufacturing and processing parameters.
Uniqueness of the equipment
Other technologies are difficult to or can hardly produce products and products in certain shapes which were produced by this extruding operation.
High-quality of the product
This extruding operation is extremely effective for high-temperature and short-period processing, it is provided with a better nutrition improvement while effectively reducing different anti-nutritional factors in products and sterilizing.
Effective utilization of energy
The cooking process of this extruding operation can cure material in a great degree, sufficiently use steam and reduce power consumption, and thus process cost can be saved.
Convenient and accurate control system
Flow and flow ratio of all materials can accurately controlled by an auto control system, and different processing parameters can be recorded, so as to provide a basis for future production or adjustment of processing parameters.
Minimum industrial wastewater
This extruding operation can effectively avoid industrial wastewater; this is an outstanding advantage for feed manufacturers bearing the increasing pressure for reducing influences of production activities on surrounding environment.
Technical parameters
Model | 90*2Ⅰ | 120*2Ⅰ | 150*2Ⅰ |
Capacity(T/h) | 2.0-3.5 | 5.2-8.0 | 8.0-14.00 |
Screw diameter(mm) | 100 | 132 | 166 |
L/D | 20:1 | 16:1/20:1 | 16:1 |
Main drive(Kw) | 110/132 | 160/200 | 315/355/400 |
Conditioner power(Kw) | 15 | 18.5+7.5 | 11+22 |
Feeder power(Kw) | 1.5 | 1.5/2.2/3.0 | 3.0/4.0 |
Note
1. The models with the suffix “I” in the type code are specialized for aqua-feed production.
2. Above data only refers to aqua-feed extrusion.
