U-type grains drag conveyor

TGSSU U-Trough drag conveyor

Applicable for the horizontal or a small slope (≤15°) conveying of bulk material

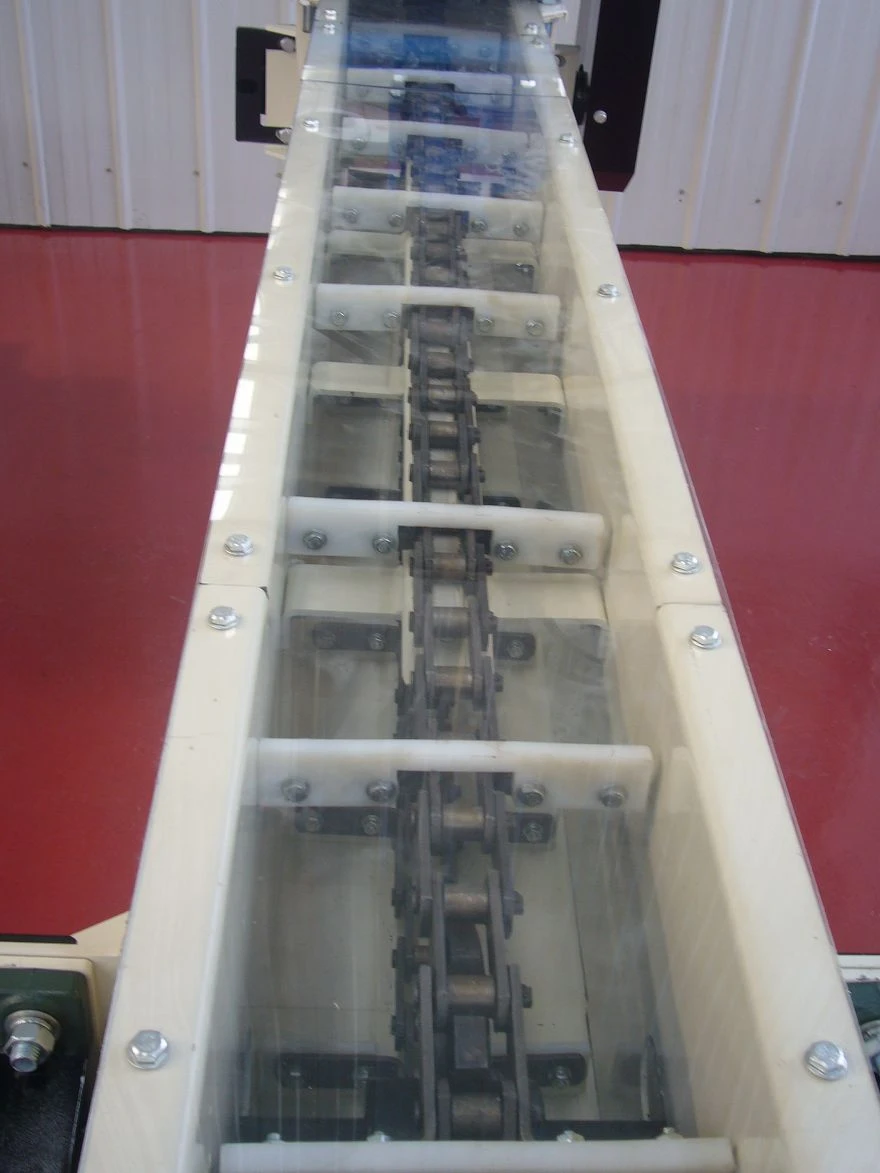

U trough structure and wear resistant paddles made of plastic, no residue and long service life.

Widely used in feed, grain and pre-mix processing.

Performance features

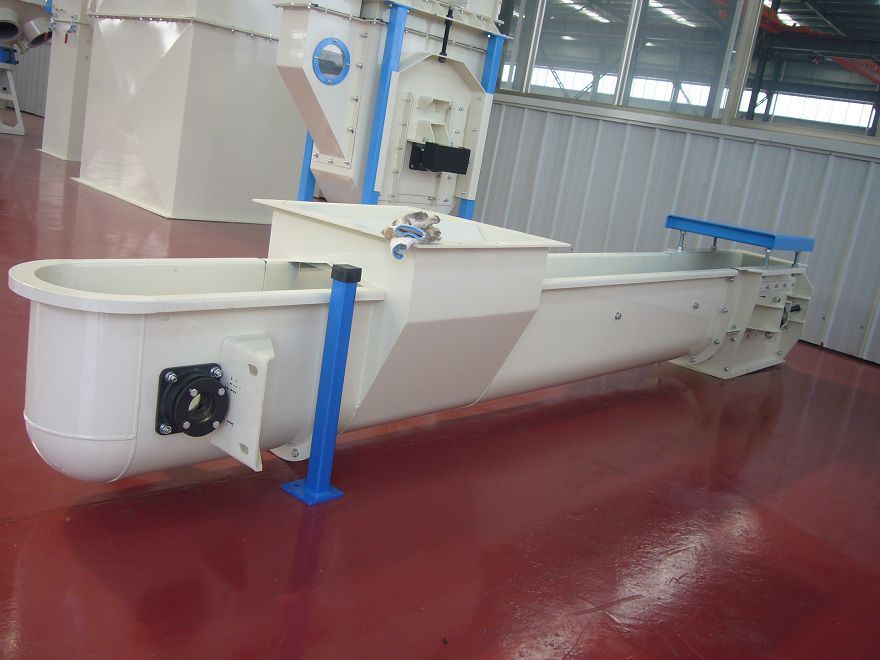

TGSU drag conveyor is generally applicable for conveying powdery material, its bottom is a welded U-type structure, and drag is made of engineering plastics, which is of low noise, less wear, no residues and long service life;

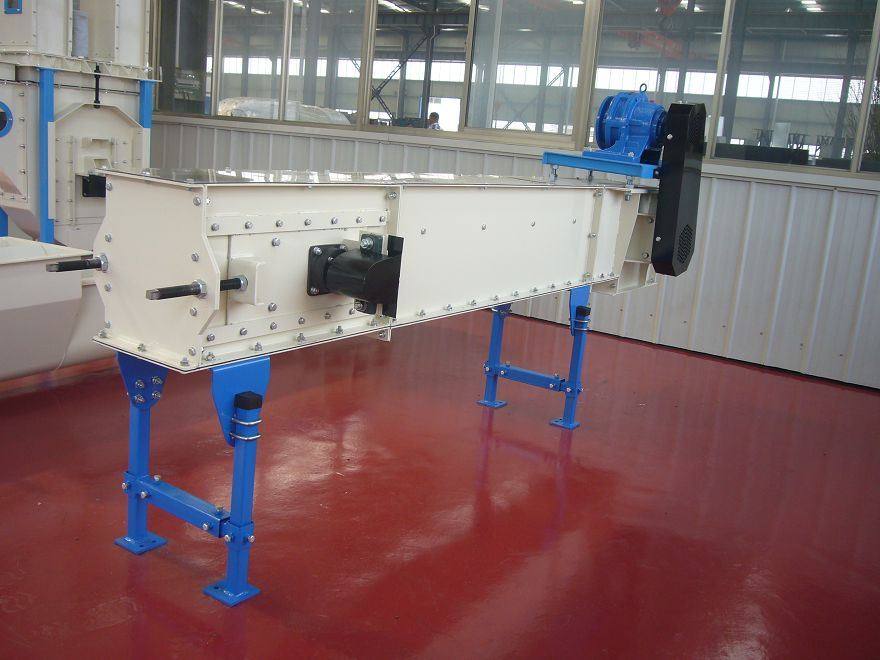

TGSS drag conveyor is generally used for conveying granular material, its bottom is connected by bolts, drag is made of engineering plastics, which is of low noise and less wear; base plate and side plate can be conveniently replaced and service life is long;

It is of simple structure, less floor area and convenient installation, can be used on a narrower place with no special requirements on working environment;

Running is safety and reliable, operation and maintain are easy and convenient with no complicate control technology;

Sealing performance is good, material is conveyed in sealed trough with no splashing and leakage, it is dust proof, water proof and explosion proof, so that pollution on material can be avoided, working condition of workers is perfected and environmental pollution is avoided;

Technological arrangement is flexible and convenient, feeding and discharging devices are simple and reliable, which can satisfy feeding and discharging at several points, and also can be sued for conveying material in different directions;

Damage to material is small, consumption is small, so that production cost is reduced and efficiency is improved;

Drag chain and machine trough are easy to be worn;

It is easy to cause adhesion and compact when conveying powdery material with high moisture, as well as floating chain.

Drag chain conveyor options

Like most mechanical conveyors there are a variety of drag chain conveyor design features to choose from. A reputable manufacturer can make drag chain conveyor recommendations based on your application requirements and budget.

Sanitary finish

Inlet support base

Corner sprockets (90˚ Idler Housing)

Hinged access covers

Hinged inlet chute access covers

Inlet vibration – electric or pneumatic

Tube mounted inlets & outlets

Tube valve with chute (a pneumatically actuated inline discharge valve)

Extended capacity chute (dust hood, splash guard, lid)

Manual or pneumatic inlet baffle

Rotation sensor

Air purge
