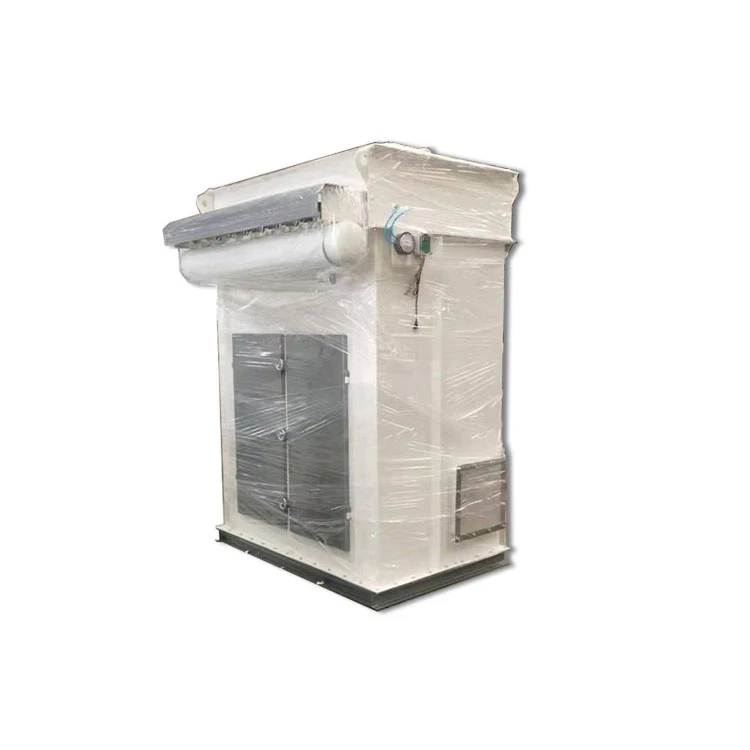

Poultry Feed Dust Collector

Dust extraction system

LNGM High pressure jet filter dust collector

Features: Cyclone principle adopted for dust separation and settlement, prolonged service life of filtering bags; quick bag changing device, ease of labor.

Application: Dust collection on a dumping pit, a pneumatic conveying system and etc.

Working air-pressure: 0.2-0.4 MPa

Filtering area: 18m², 27m², 30m², 36m², 45m², 54m², 63m², 72m², 81m², 90m², 117m², 228m².

Application and adaptability

Dust collector belongs to a bag-type, high-pressure, reverse air jet and impulse dust collector, featured by reliable performance, high efficiency dust collecting, easy operating and maintenance. It is applicable for dust control in industries of cereals and feed processing, machinery, metallurgy, building materials and cement, and dust cleaning or recycling and filtering in pneumatic conveying or aspiration duct collecting in other workshop sections.

Features

It can be used for pretreatment of dust-containing air, large sized dust is settled firstly, small sized dust is filtered through a filtering sleeve so as to improve the service life of the sleeve;

A quick mounting and dismounting mechanism manufactured with patent technology for cloth sleeve is applicable for improving operation environment and work efficiency;

Common cleaning work

-Keeping the working site with combustible dust clean is an important condition for safe production.

-Try not to pile bagged or bulk materials between machines.

-In order to reduce dust emission to surrounding areas, all conveying devices, cyclone separators and dust collectors should be kept in good condition. Especially, the unsealing phenomena of pipes or top covers should be avoided.

-In order to reduce dust explosion hazard, dust everywhere must be cleaned out frequently and effectively.

-Keep all motors free of deposited dust.

Frequent inspection and maintenance

-Regularly check the safety devices such as speed monitor or the like, at least once a week.

-Check and clean all the magnetic separators, at least once a day.

-In order to avoid heat generation, it is necessary to regularly check the functions of all main shafts and bearings, at least once a week, and to regularly fill up lubricating oil.

Technical parameters
