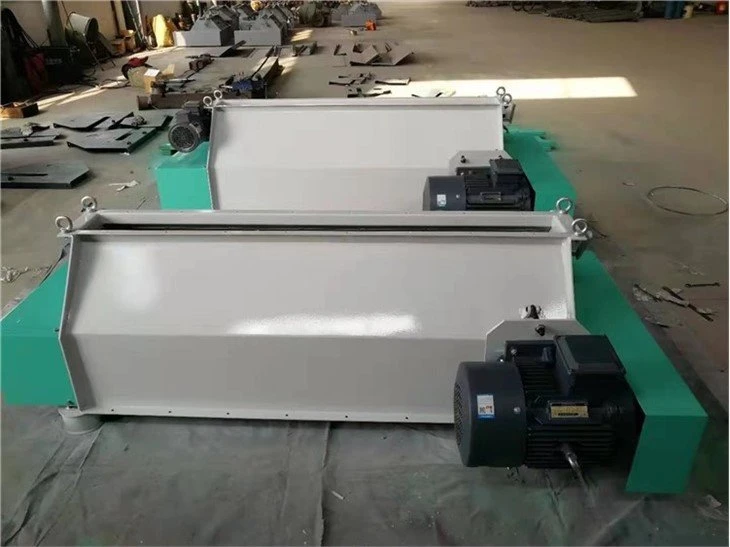

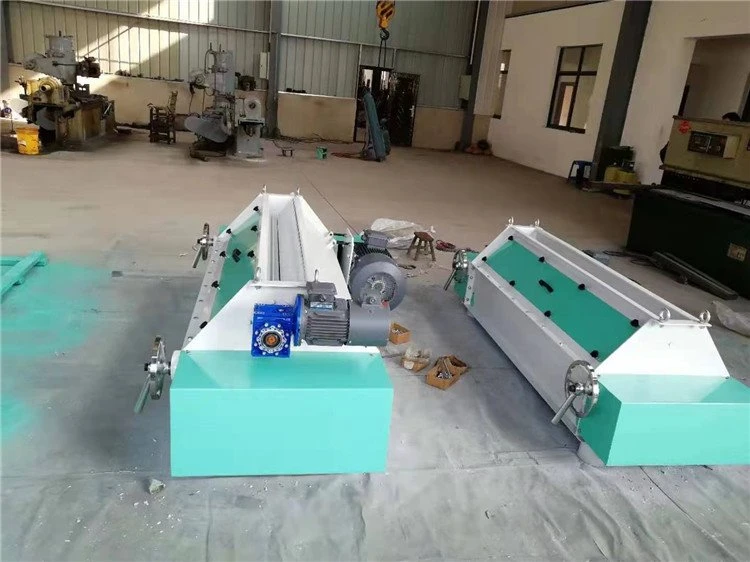

Feed crumbler machine
The most cost effective machine to produce small pellet feed for poultry, livestock and aquatic animals.
Features
Roller removal both to the front and to the side possible
Smooth operation, low wear and easy maintenance due to direct drive without chains, belts or gear wheels
One roller is spring-mounted
Roller gap and spring preload can be adjusted by means of screw spindles
The gap width can be read on both sides at the dial gauges
Additional remote control of the roller gap as well as the reversing flap settings by additional devices
Material guiding design (optional) and adjustable roller gap for more flexible crumbling process
Pellet size as small as 0.8mm~1.5mm.
Technical parameters
Model | Capacity(T/h) | Main motor power (Kw) | Note |
MUSL20*80 | 5-8 | 7.5 | 2 rolls |
MUSL24*110Ⅱ | 10 | 11+1.5 | 3 rolls |
MUSL24*165Ⅱ | 20 | 15+1.1 | 3 rolls |
MUSL24*110 | 10 | 11 | 3 rolls |
MUSL24*165 | 2-4 | 7.5+1.1 | 3 rolls |
MUSL24*110X | 20 | 15 | 3 rolls |
MUSL30*180 | 22 | 22 | 3 rolls |
MUSL30*180X | 4-8 | 22+1.1 | 3 rolls |
MUSL30*180Ⅱ | 22 | 22+1.1 | 3 rolls |
Note: X means special crumbler for shrimp feed
