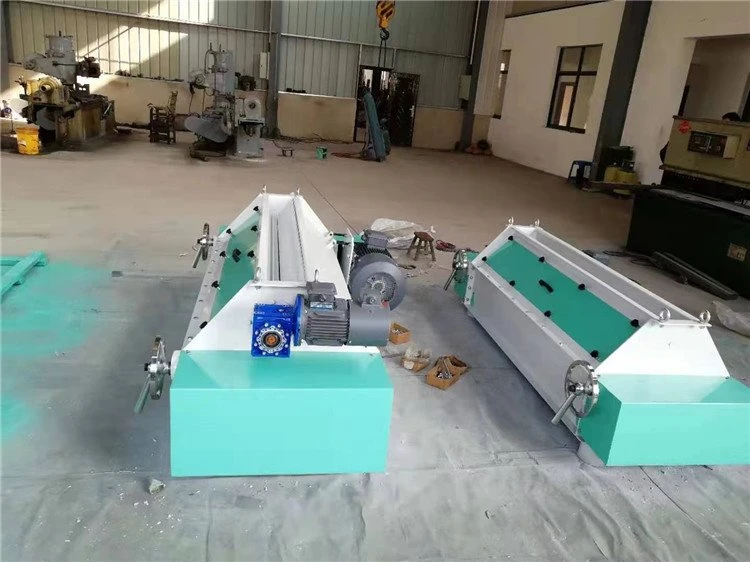

Crumbler for chicken feed
The most cost effective machine to produce small pellet feed for poultry, livestock and aquatic animals.
Features
Material guiding design (optional) and adjustable roller gap for more flexible crumbling process
1. This series is special equipment to crush large pellets to small pellets. It is suitable to crush pellets of various sizes from 0.6-1.5mm (fine type) or 1.0-2.5mm (normal type).
2. Compact structure contributes to uniformly reduced particle size. The adjustment of the final size is convenient.
3. Being equipped with rollers running in differential speed can make the pellet materials are squeezed, cut and tore between the two rollers. This produces perfect crushing effect.
4. The unique feeding hopper and bypass ancillary equipment play a role not only in refining, but also guiding the materials that do not need to be crushed to bypass stream, which can automatically shut down when the bypass flow through the trip switch.
5. Narrow V belt drive make sure smooth transmission, low noise, reliable running and easy operation.
6. Adopted with special roller distance adjustment mechanism, which is easy and reliable.
Technical parameters
Model | Capacity(T/h) | Main motor power (Kw) | Note |
MUSL20*80 | 5-8 | 7.5 | 2 rolls |
MUSL24*110Ⅱ | 10 | 11+1.5 | 3 rolls |
MUSL24*165Ⅱ | 20 | 15+1.1 | 3 rolls |
MUSL24*110 | 10 | 11 | 3 rolls |
MUSL24*165 | 2-4 | 7.5+1.1 | 3 rolls |
MUSL24*110X | 20 | 15 | 3 rolls |
MUSL30*180 | 22 | 22 | 3 rolls |
MUSL30*180X | 4-8 | 22+1.1 | 3 rolls |
MUSL30*180Ⅱ | 22 | 22+1.1 | 3 rolls |
Note: X means special crumbler for shrimp feed
