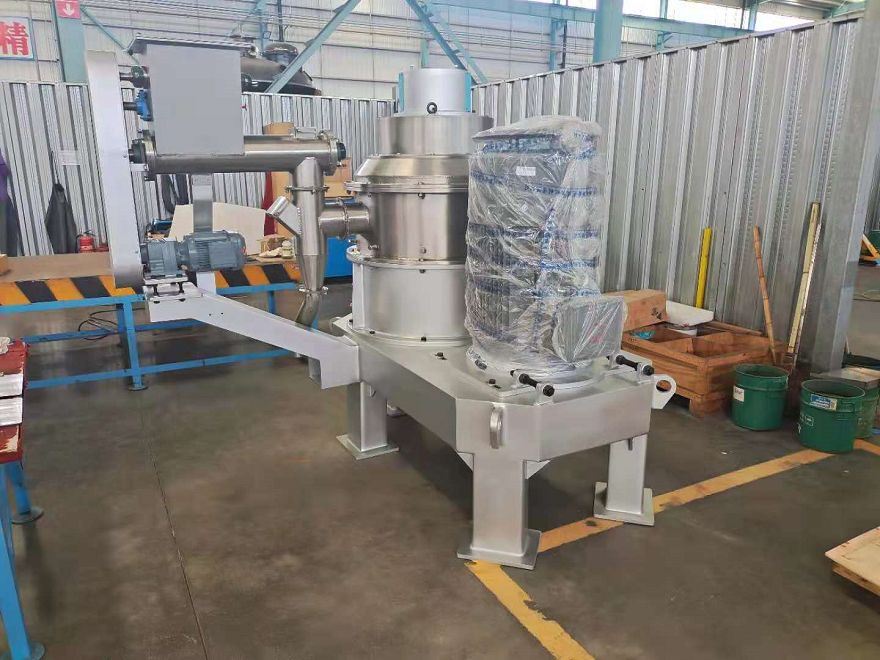

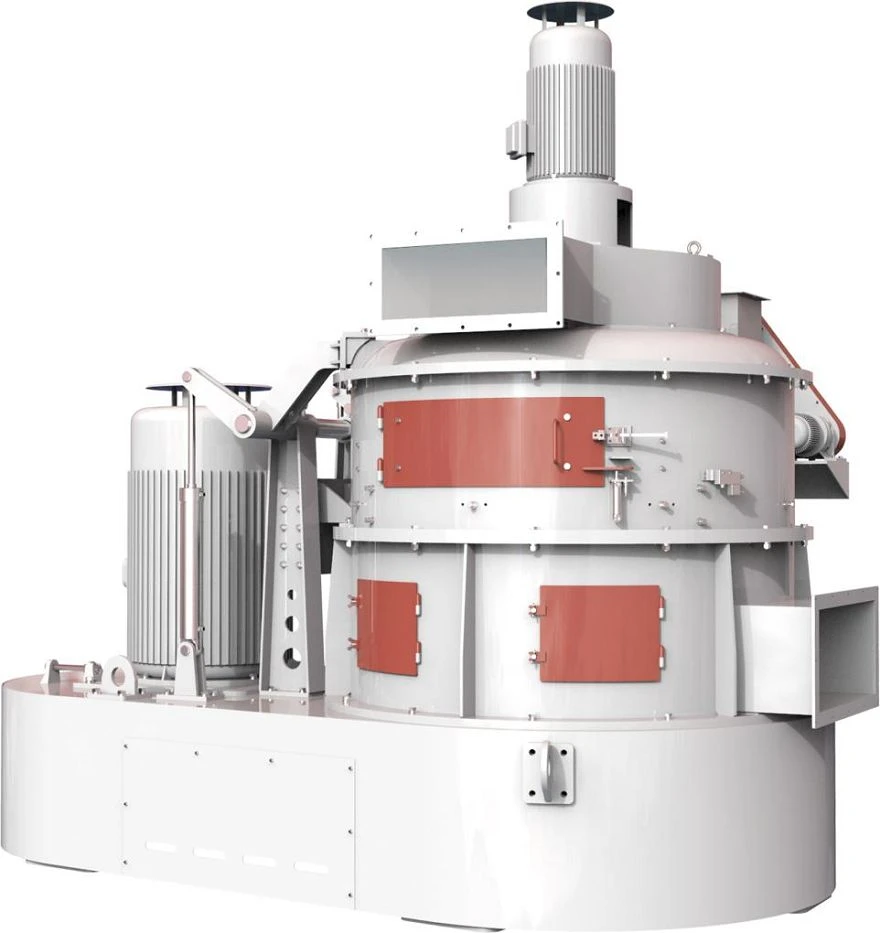

SWFL Series Ultra-fine Pulverizer

Feed pulverizer

SWFL Series ultra-fine pulverizer is a highly efficient pulverizer for ultra-fine grinding of raw materials in aqua-feed, pet food and feed production.

Use for grinding more value out of your raw materials.

A-High energy efficiency

Redesigned convex cover and aspiration system to diminish resistance, avoid over-grinding, facilitate discharge and reduce power consumption.

B-Increased capacity

Due to the innovative guiding to grind technology, output of the pulverizer(132Kw) is increased by 10-15%.

C-Good product quality

Optimal grinding chamber and aspiration transport ensures a low temperature grinding without nutrient degradation.

D-Low maintenance

No sieves furnished and wear parts with a longer service life, require less maintenance.

Remarks

1. The grinding chamber and the grading room are in the same chamber, which means it can finish grinding, air classification, separation and re-grinding procedures.

2. Air classification system is controlled by high-precision micrometer. The fineness can ranges 80-200 mesh and can be adjusted according to your requirement.

3. High strength alloy steel blade, the wear-resisting tooth plate with long service life and narrow V-belt drive make spare parts for this machine low wastage and save you production costs.

4. The imported bearings and oil sealing are with high quality. The main bearing is equipped with water cooling system that can assure non-stop production for a long time.

5. When the electricity consumption is low and the capacity is high, the final products are uniform in fineness.

Technical parameters
