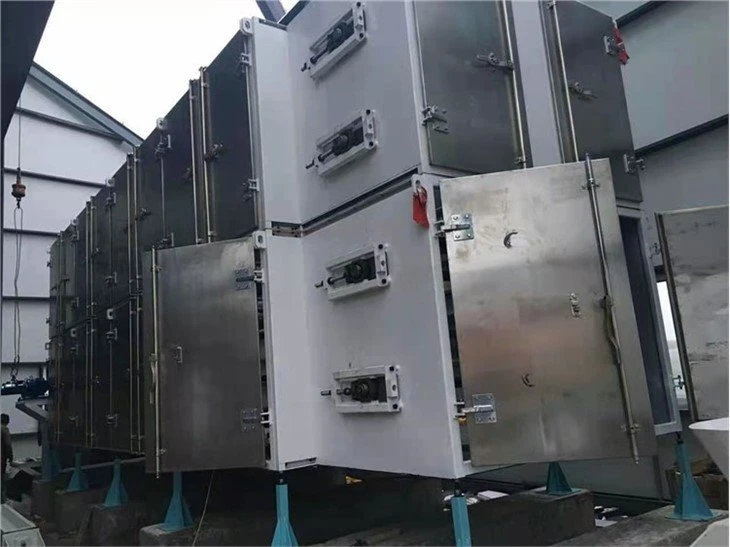

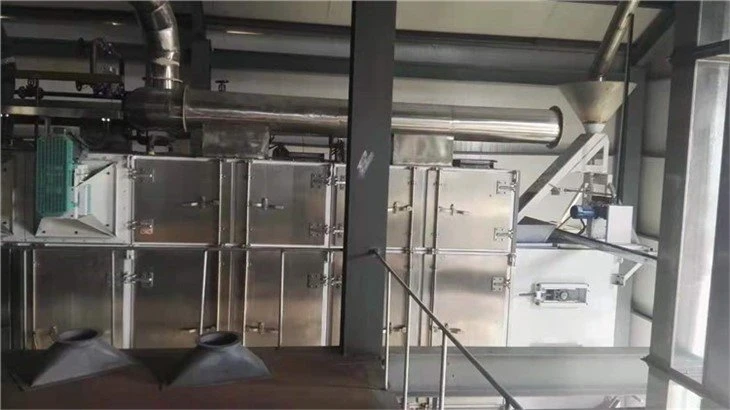

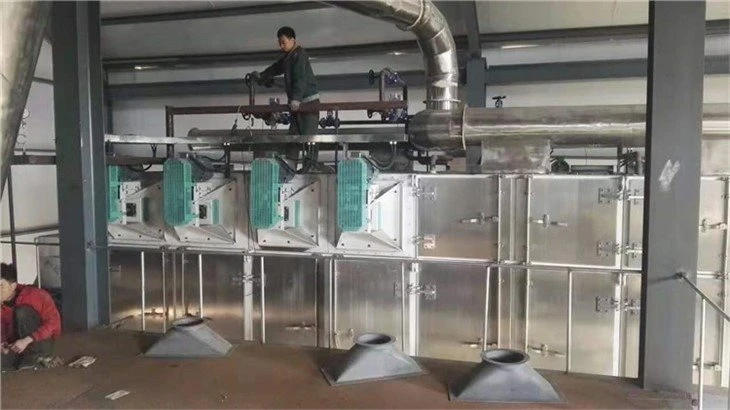

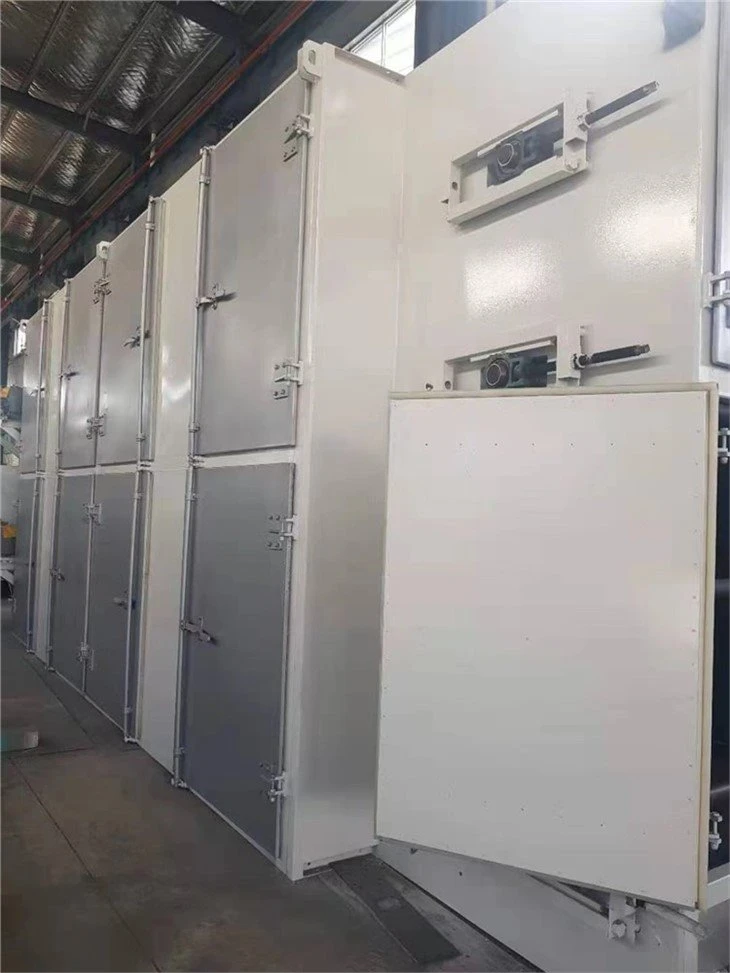

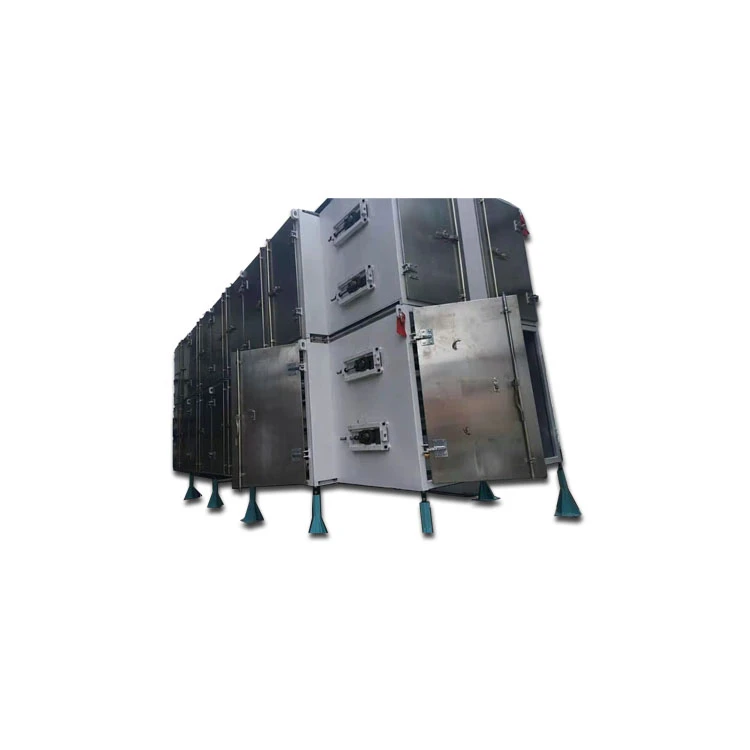

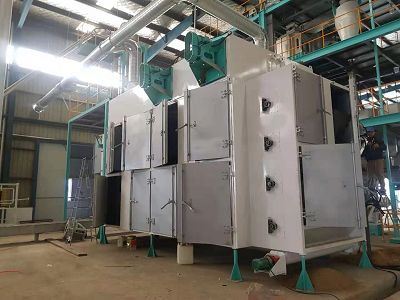

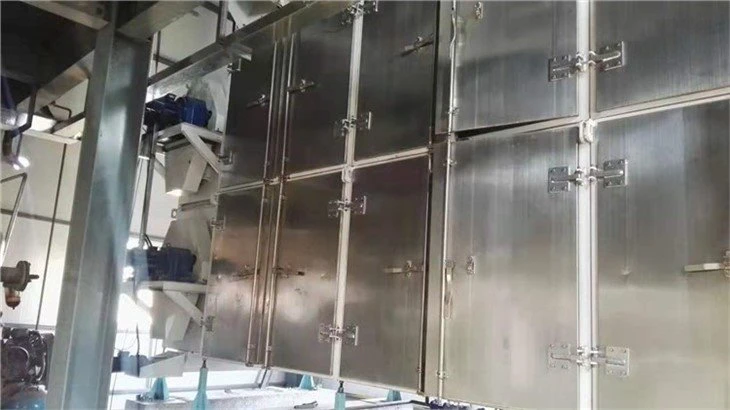

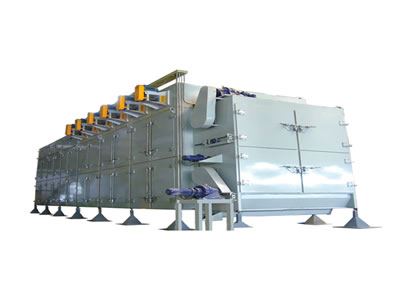

Multi-stage dryer
This model is suitable for the drying treatment of products like extruded feed, pet food and grain products.
The dryer type or model is specialized for drying aqua-feed of high gelatinization and good water stability for shrimp, ell, turtle, etc.
Re-utilized hot air, saved energy.
Have a horizontal belt decks, stable running and low breakage.
Adjustable drying temperature, material retention time and flow bed depth, flexible quality control.
Have a detachable structure, easy to install and maintain.
Structural features and working principle

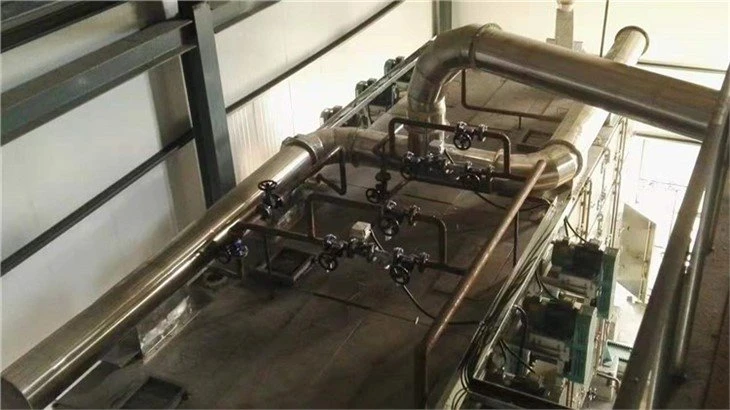

The drying process system of circulating flow belt dryer shall be composed of a principal machine, a steam supply system, an induced draft and air volume control system, an indraft dust collection system, an electrical control system and etc.
This chapter mainly introduces the main structure and working principle of main principal of the dryer and its other parts will be introduced in following sections.
Overall structure
The principal machine of the dryer is mainly composed of spreader, feeding section, drying section, material returning section, conveying belt, supporting feet and others.
Technical parameters
Model | Capacity(T/h) | Power(Kw) |
SKGD20*4 | 3-4 | 50.65 |
SKGD20*5 | 5.0-6.5 | 61.65 |
SKGD20*6 | 6.0-8.0 | 74.25 |
SKGD20*8 | 8.0-10 | 99.05 |
SKGD24*4 | 4.0-7.0 | 71.05 |
SKGD24*6 | 8.0-11 | 101.05 |
SKGD24*8 | 12-16 | 131.05 |
